Beam™
Hot Spring® Spas

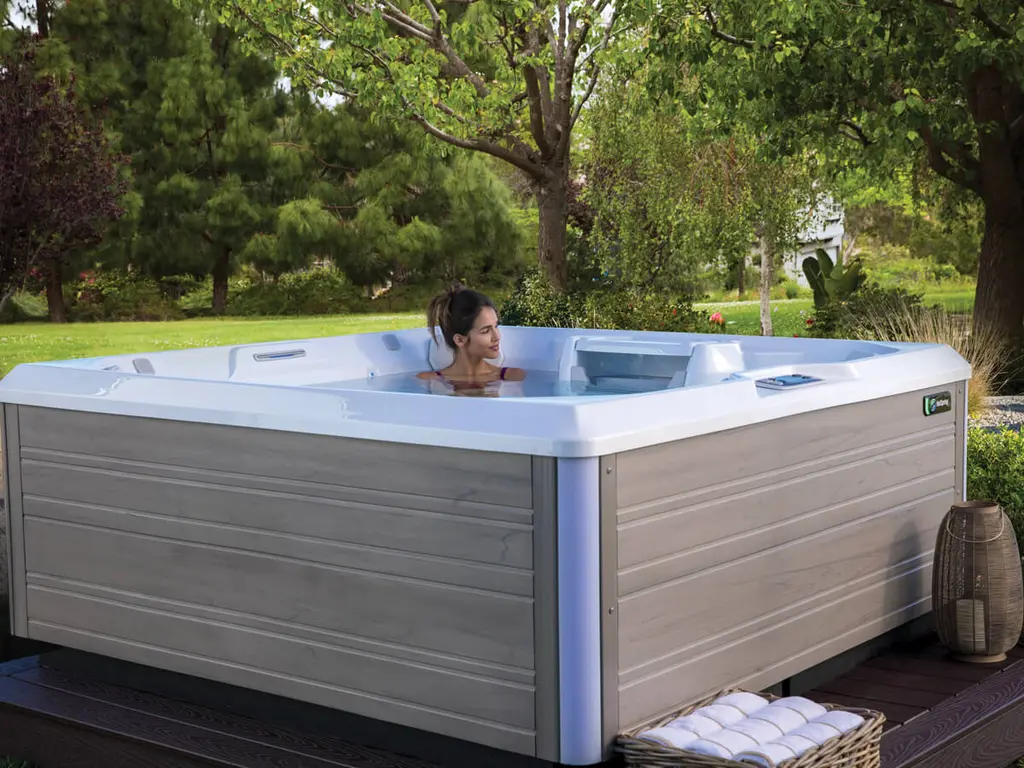

SMALL STATURE. BIG POSSIBILITIES

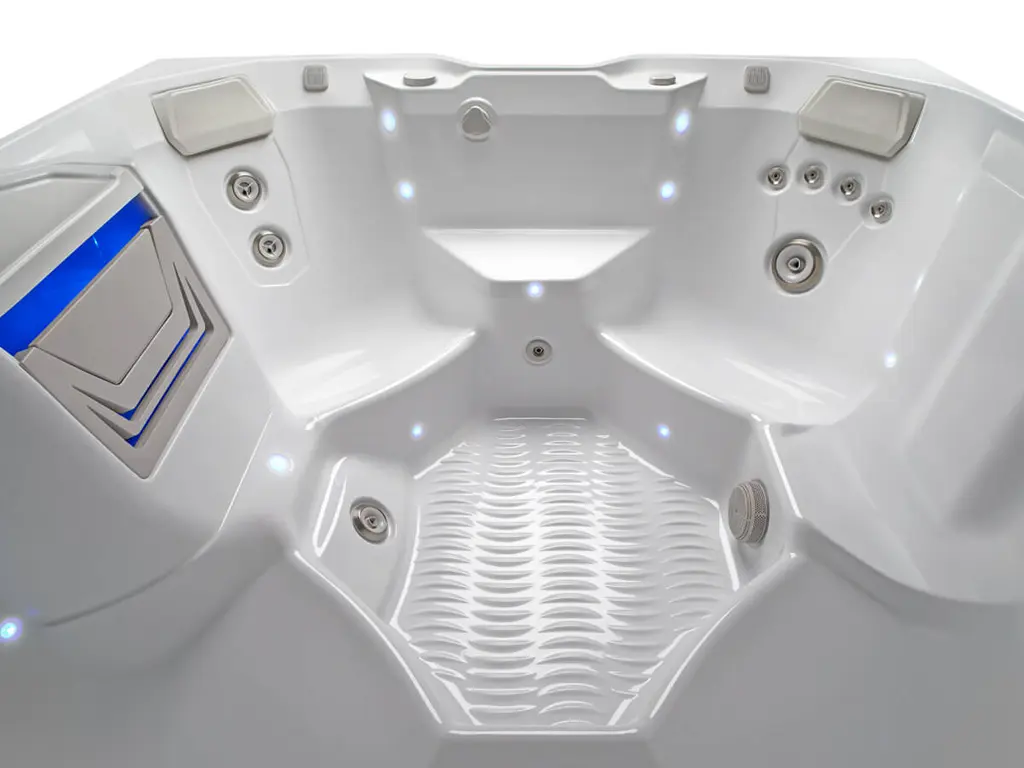

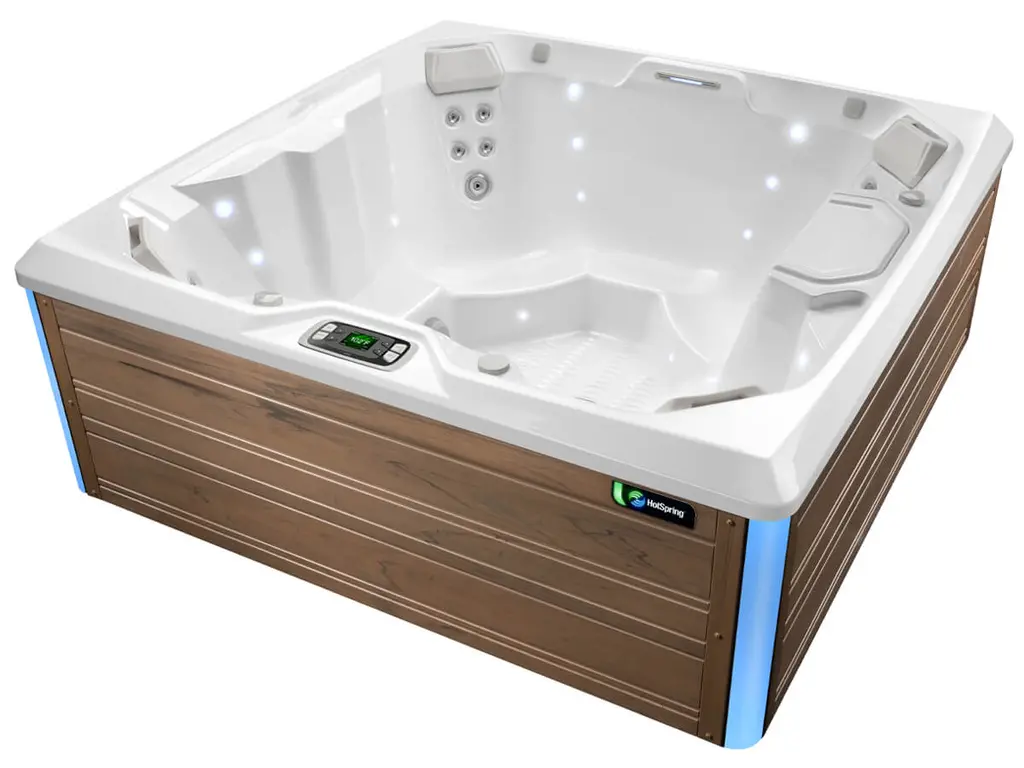

Ideal for tighter spaces, the Beam has a smaller footprint but still provides spacious seating for four people. Each corner seat features a different hydrotherapy option and the large footwell is an added bonus in this spa’s roomy interior.
6’8” x 6’8” x 33”
2.03m x 2.03m x 0.84m
295 gallons/1,115 liters
700 lbs./320 kg dry; 3,860 lbs./1,750 kg filled*
FreshWater® Salt System Ready
Open

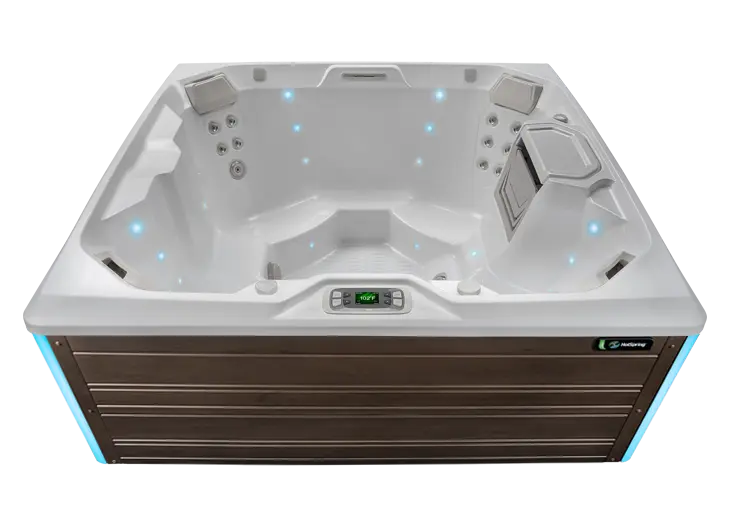

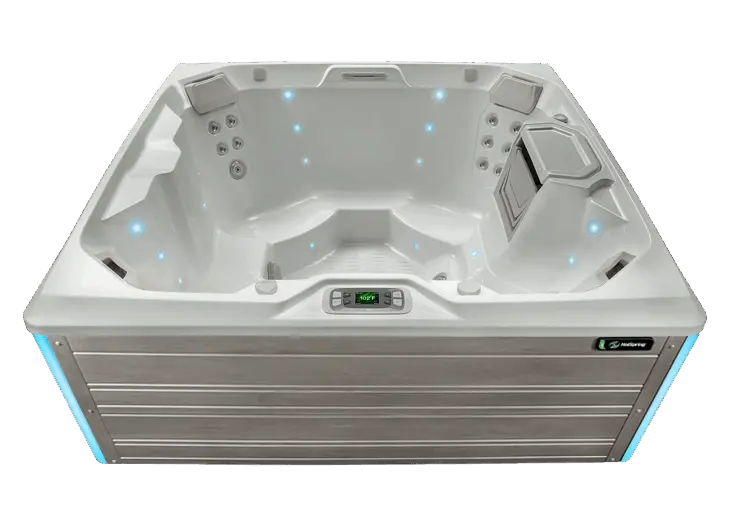

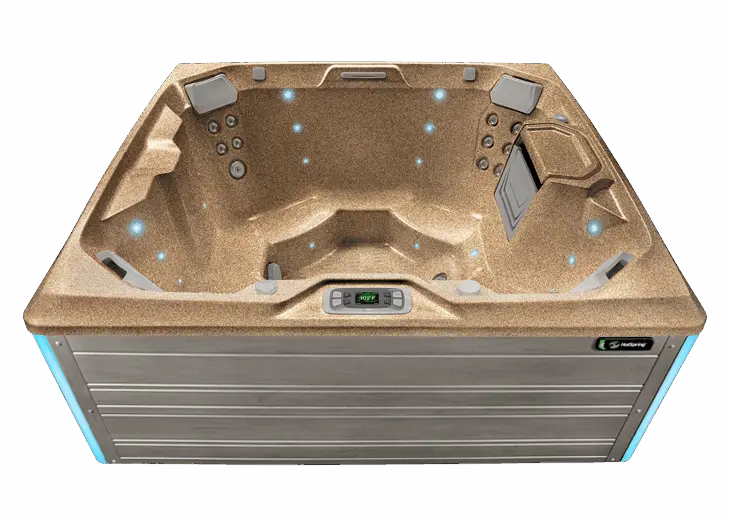

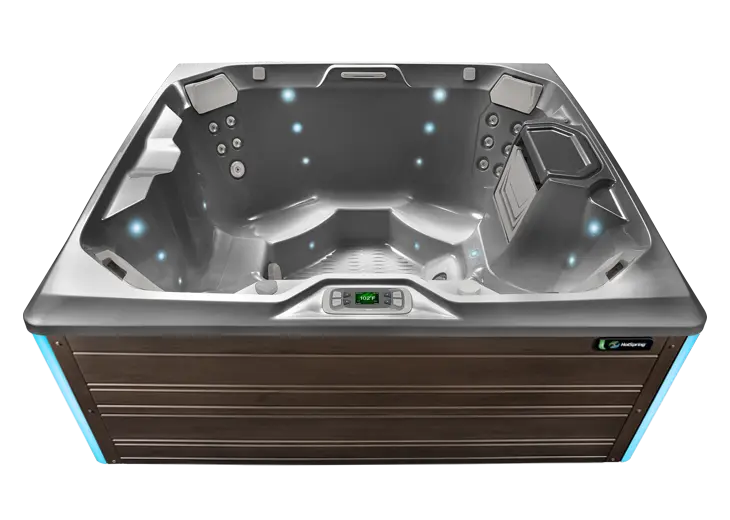

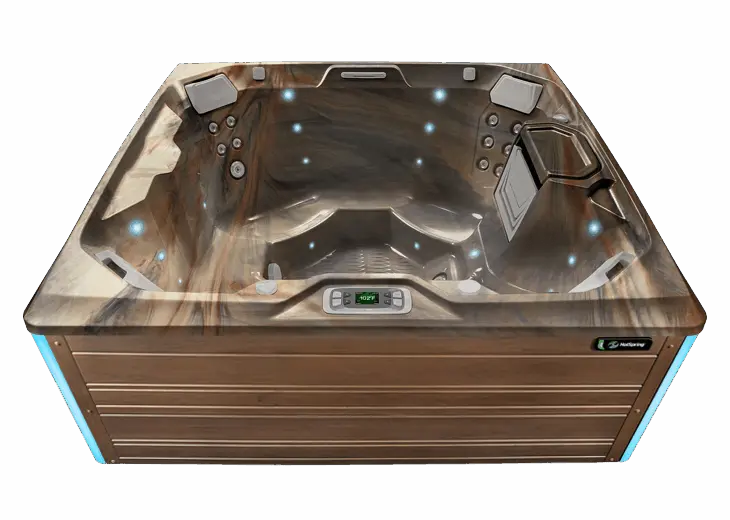

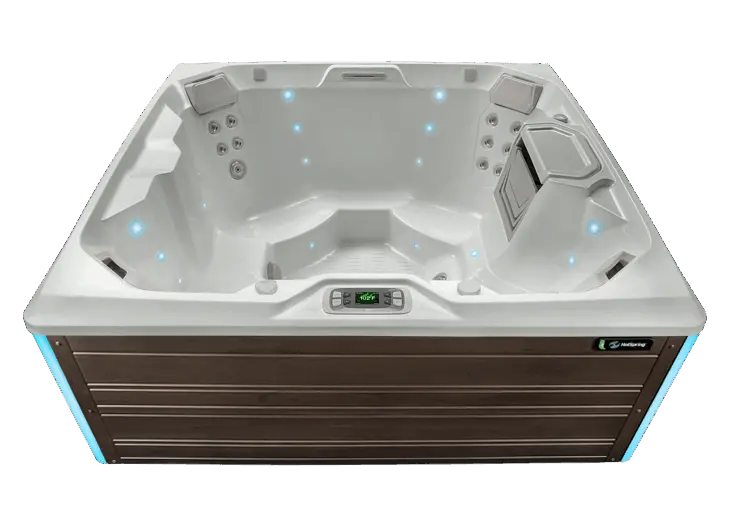

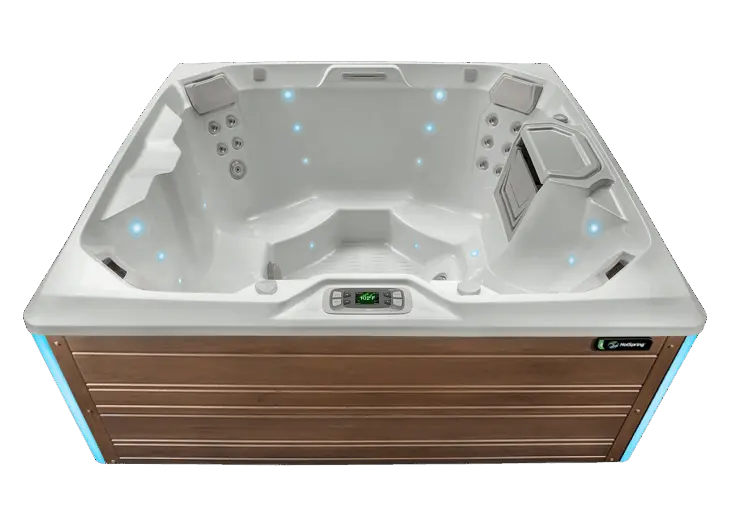

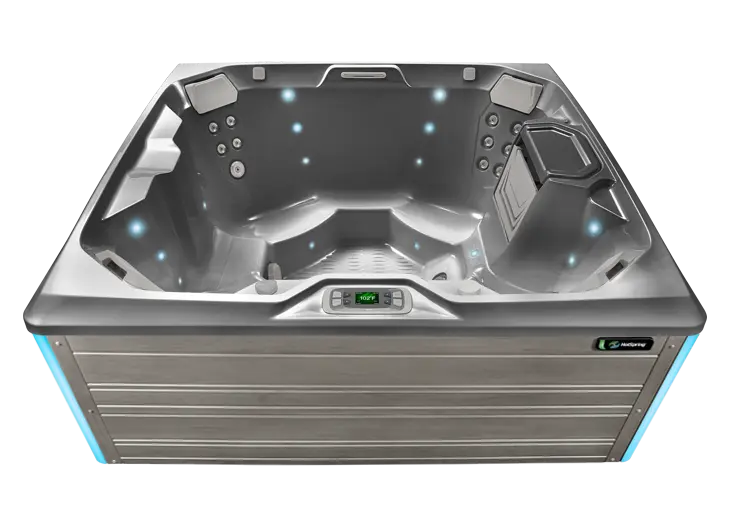

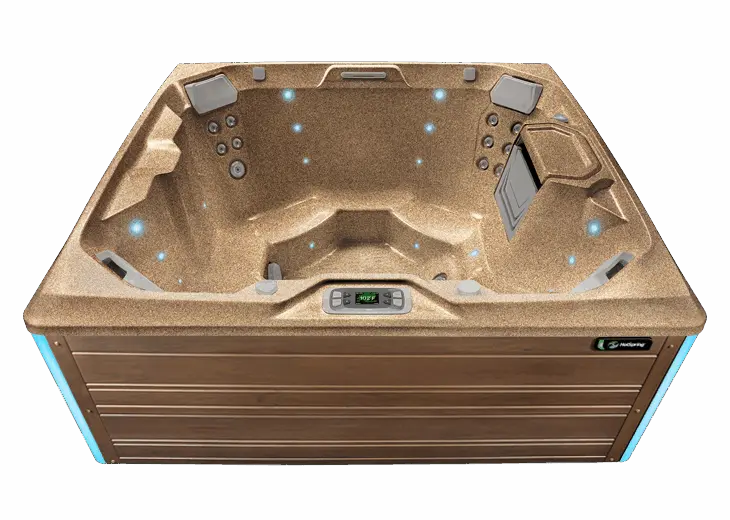

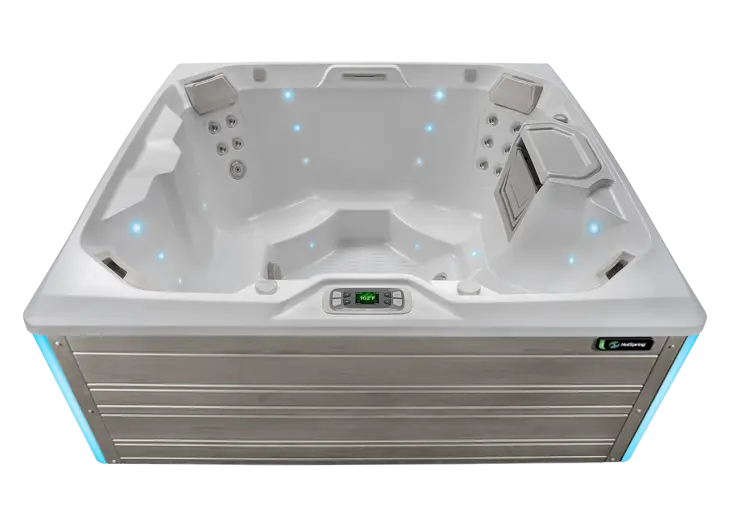

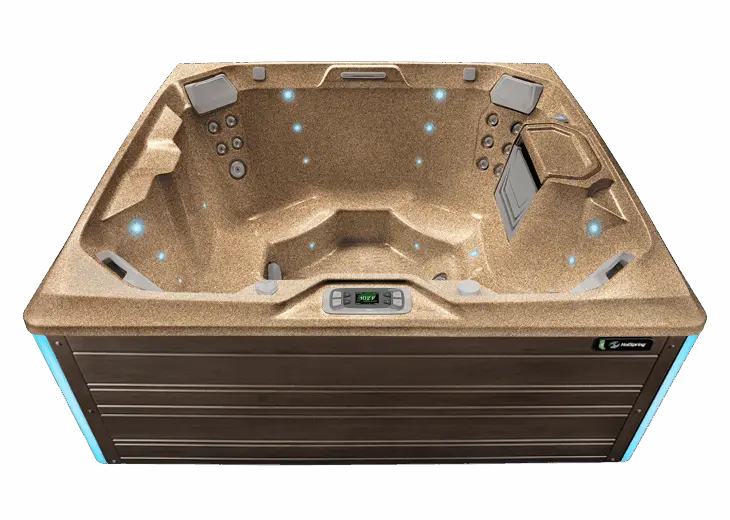

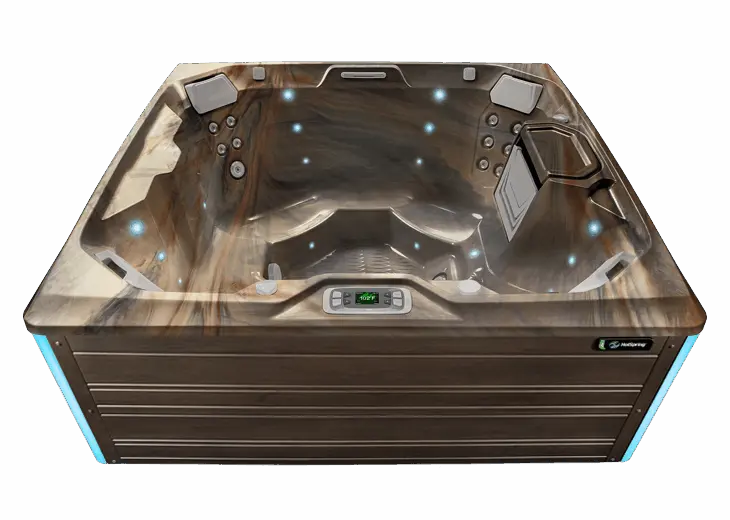

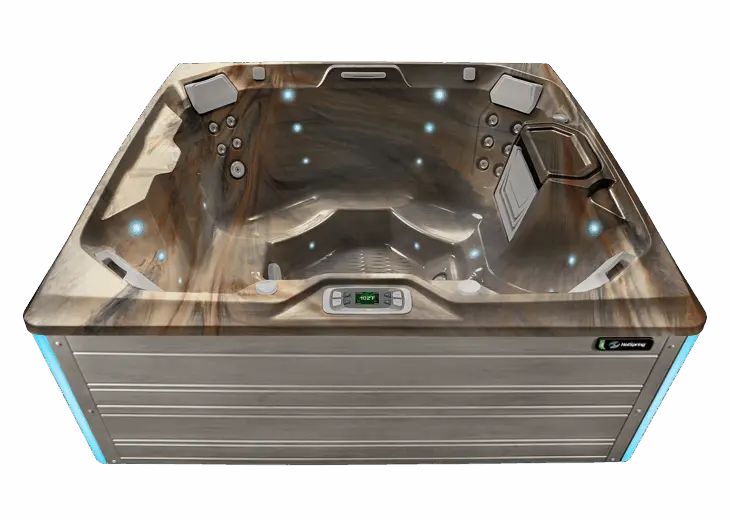

Alpine White, Ice Gray, Platinum, Tuscan Sun or Desert
Coastal Gray, Espresso or Sable
Vidro® backlit ribbon waterfall
Titanium No-Fault® 1,000 W / 115 V or 4,000 W / 230 V
SilentFlo 5000® for quiet, continuous filtration
100 sq. ft., top-loading filters
IQ 2020® with LCD control panel
230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel
or 115v/20amp, 60Hz
includes G.F.C.I. protected power cord
Raio® multi-color interior points of light (30) Exterior multi-color lighting with timer
FiberCor® insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
Hot Spring Spas App, powered by the Connected Spa Kit
CoverCradle® , CoverCradle II, Lift ‘n Glide® or UpRite®
Wireless Entertainment
115 or 230
Wavemaster® 9000 One-Speed 2.5 HP, continuous duty 5.2 HP, breakdown torque or Wavemaster 7000
One-Speed
1.65 HP, continuous duty
3.5 HP, breakdown torque
3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chestnut or Slate
Everwood® or Polymer
CoolZone™
.webp)
These small, powerful jets are clustered to direct targeted streams to select muscle groups.

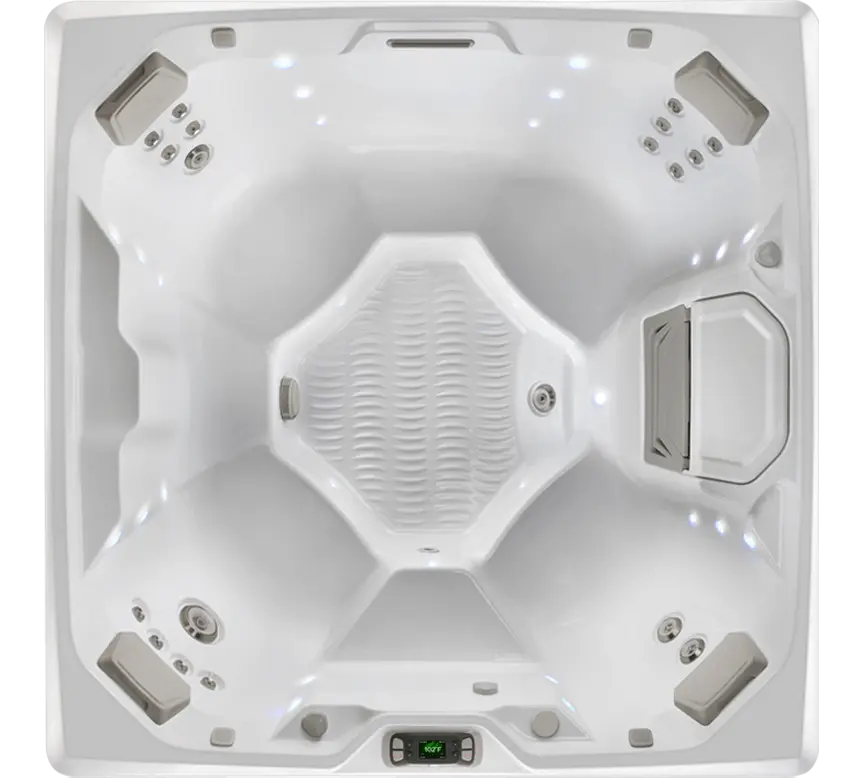

See jet system location on the left.
See jet system location on the left.
See jet system location on the left.
