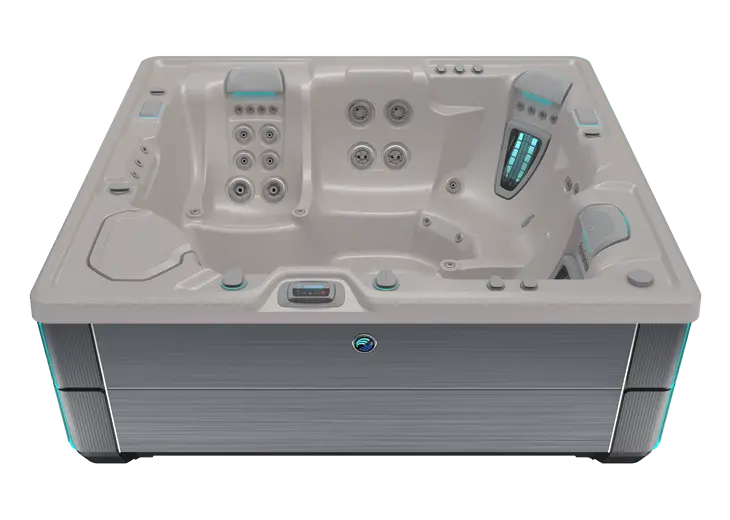

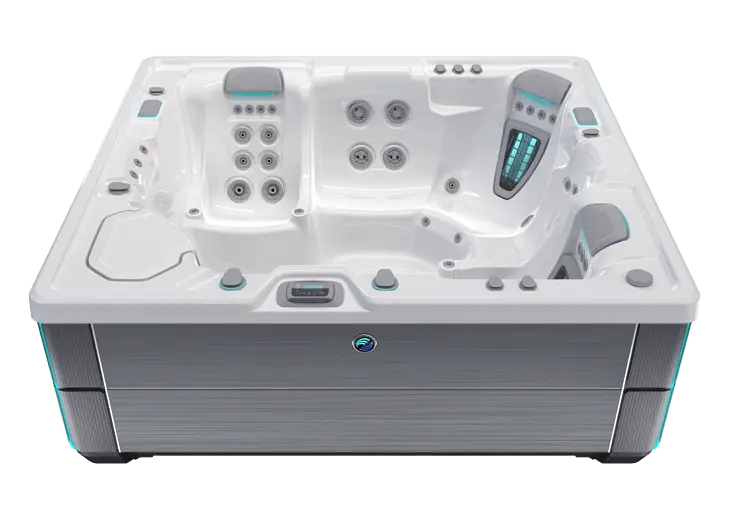

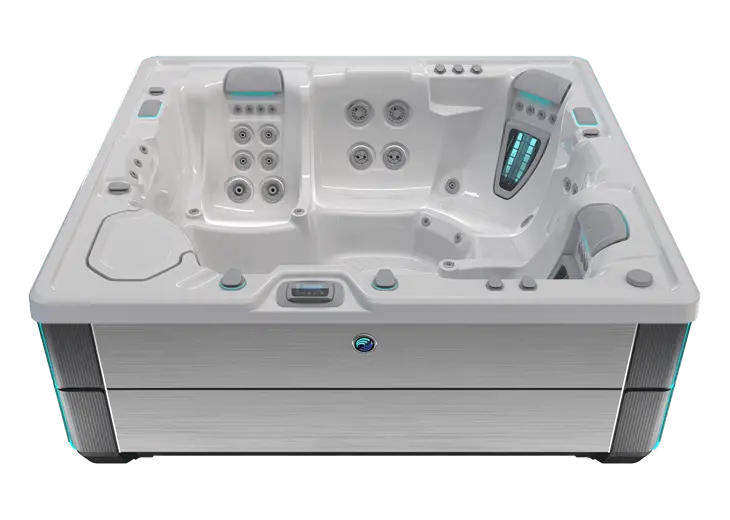

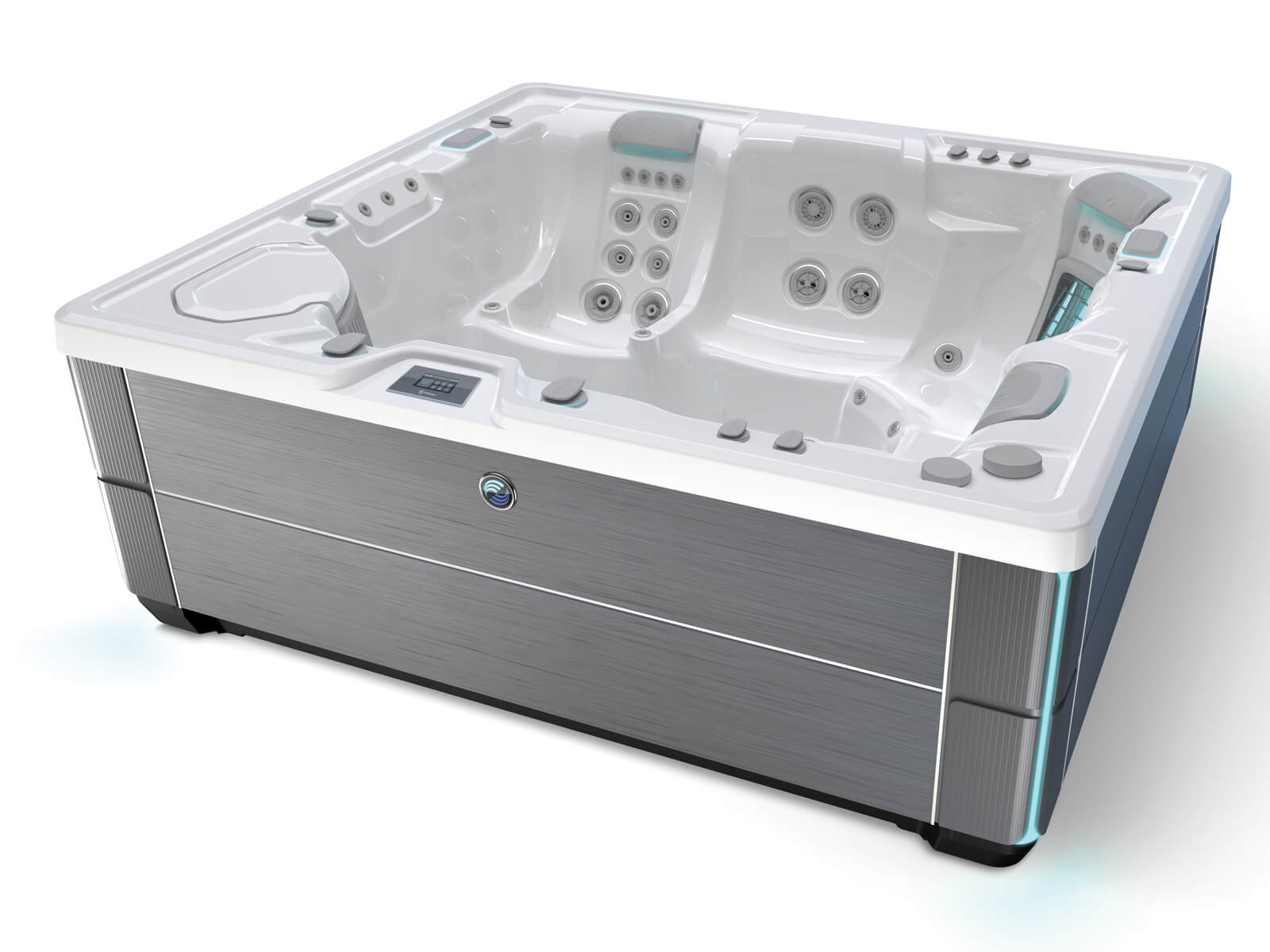

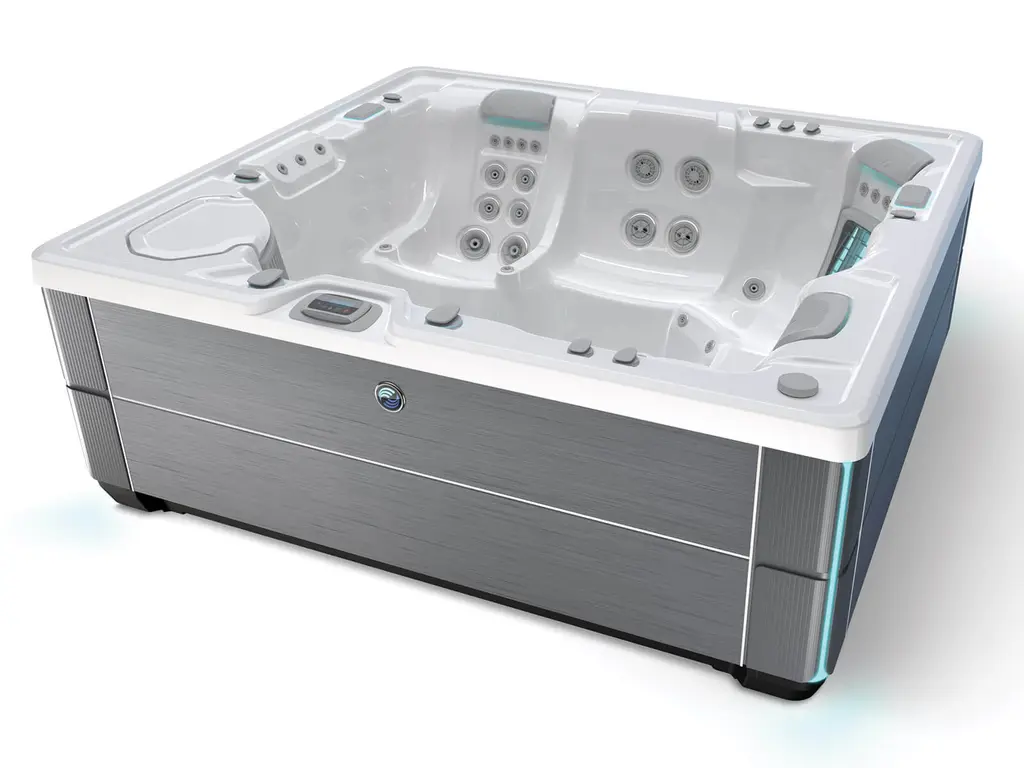

Envoy®
Hot Spring® Spas

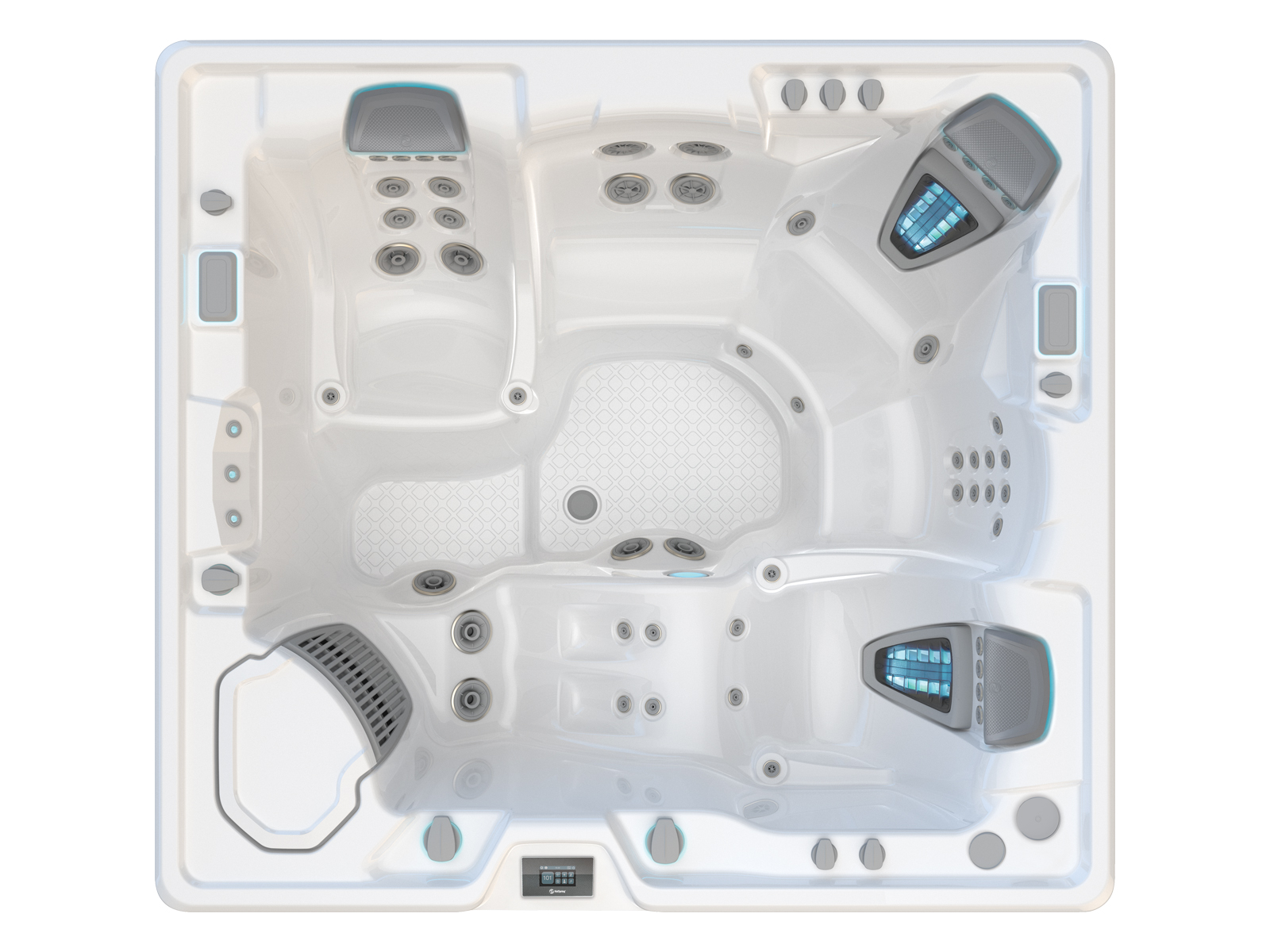

ROOMY LOUNGER

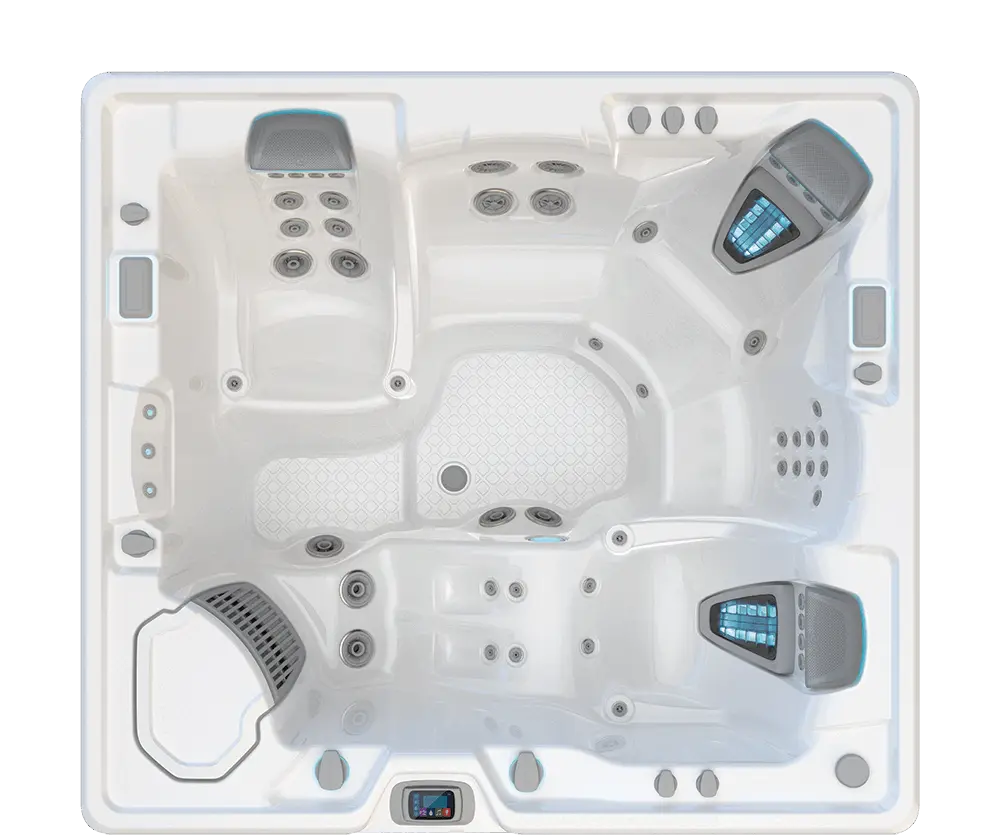

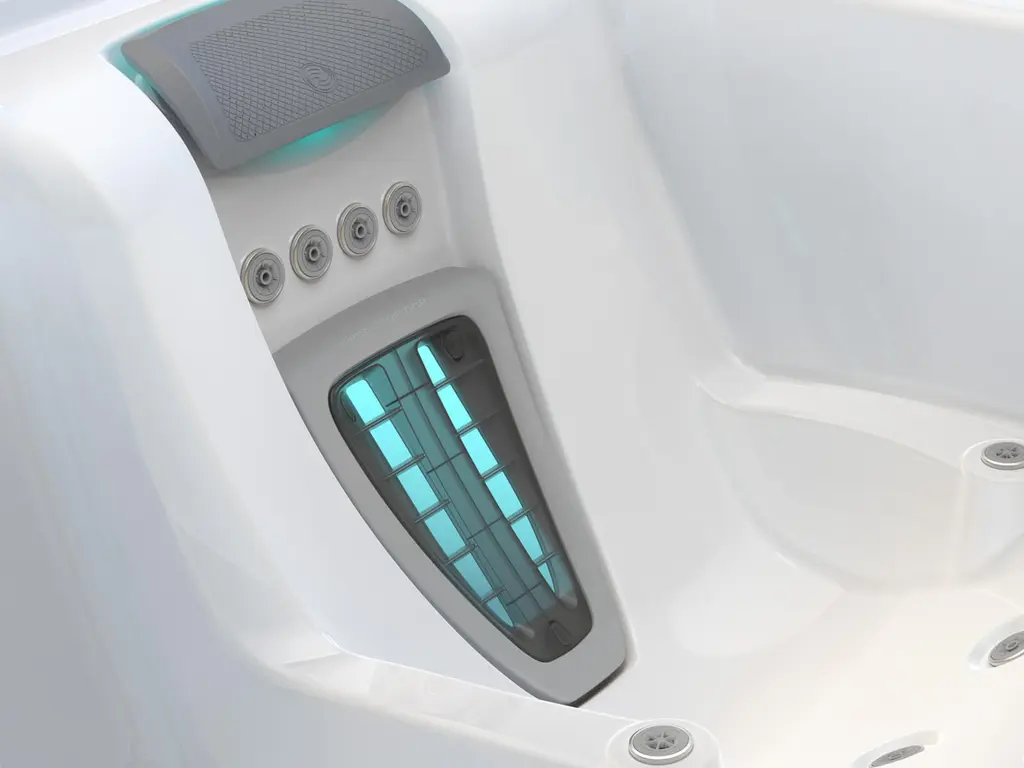

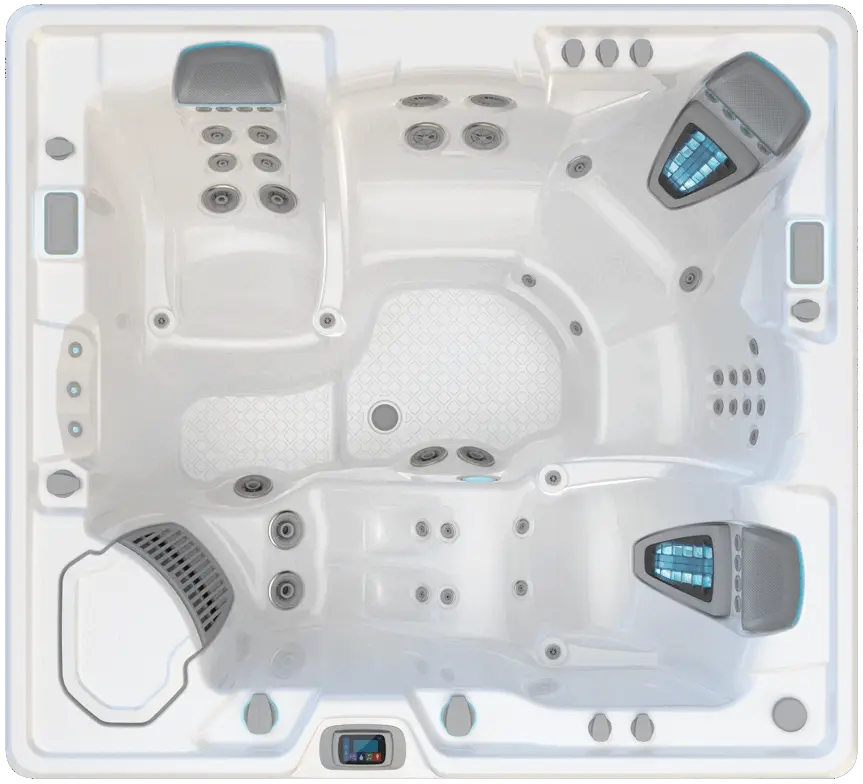

The roomy Envoy offers five full-body massage options with two Moto-Massage® DX jets, a lounge and captain’s chair with wrist jets, and foot or ankle massage in every seat.
8’4” x 7’7” x 38”
254 cm x 231 cm x 97 cm
455 g/1,725 L
785 lb./355 kg dry
5,455 lb./2,480 kg filled*
Freshwater® Salt System Ready
Lounge
No-Fault® , 4000w/230v
Wavemaster® 9000
One-speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Wavemaster® 9200
Two-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
SilentFlo 5000® for quiet continuous filtration
325 sq. ft., top loading Tri-X® filters

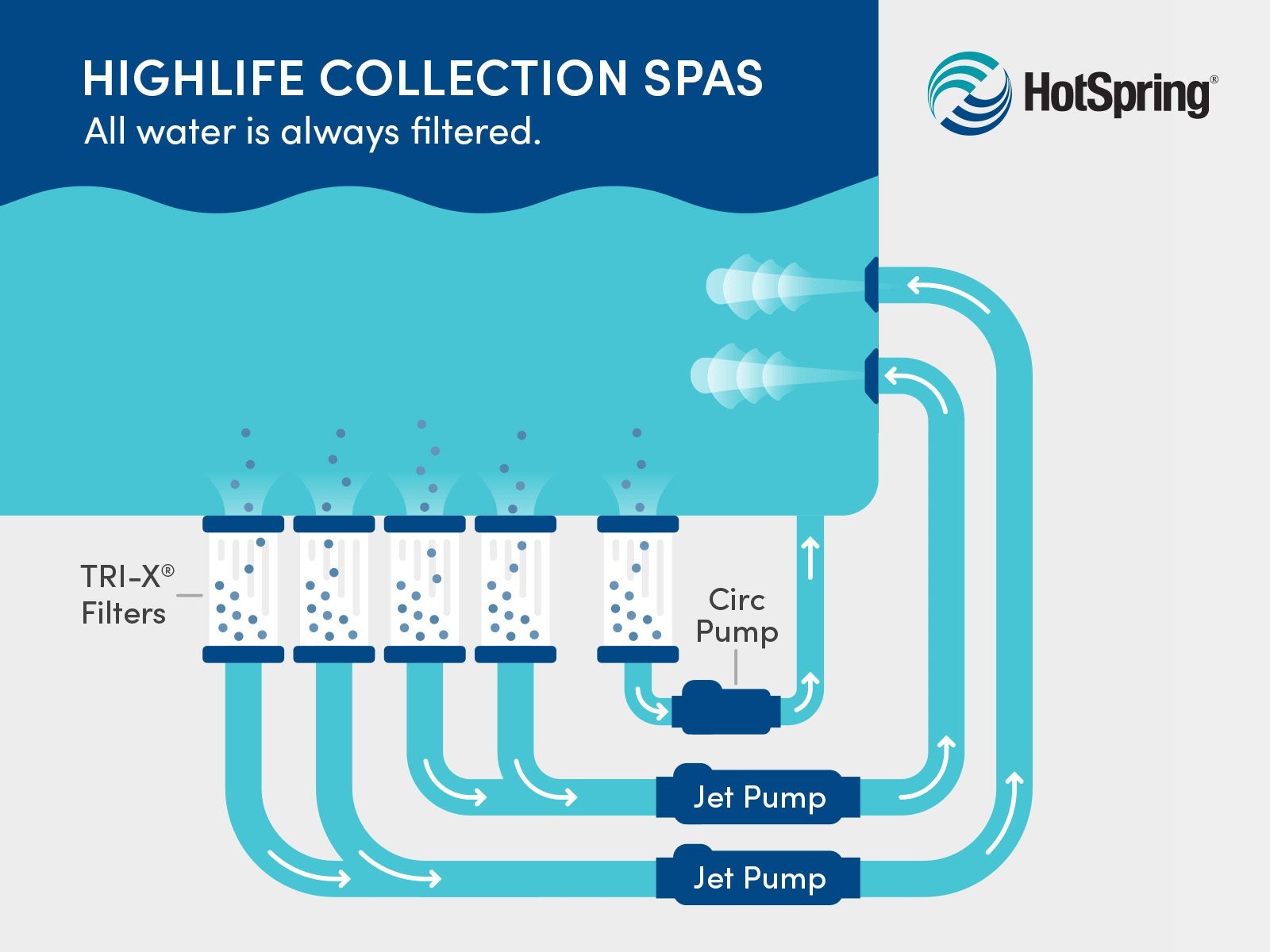

100% no-bypass filtration
IQ 2020® with wireless remote control
230v/50amp, 60Hz
Includes G.F.C.I. protected sub-panel
Luminescence® multi-color four-zone
Multiple Layers of Foam Insulation; Certified to California Energy Commission (CEC) and APSP 14 energy efficiency standards for portable spas
Hot Spring Spas App, powered by the Connected Spa Kit
3.5" to 2.5" tapered
2 lb. density foam core with hinge seal
CoverCradle® , CoverCradle II® , Lift ‘n Glide® , UpRite®

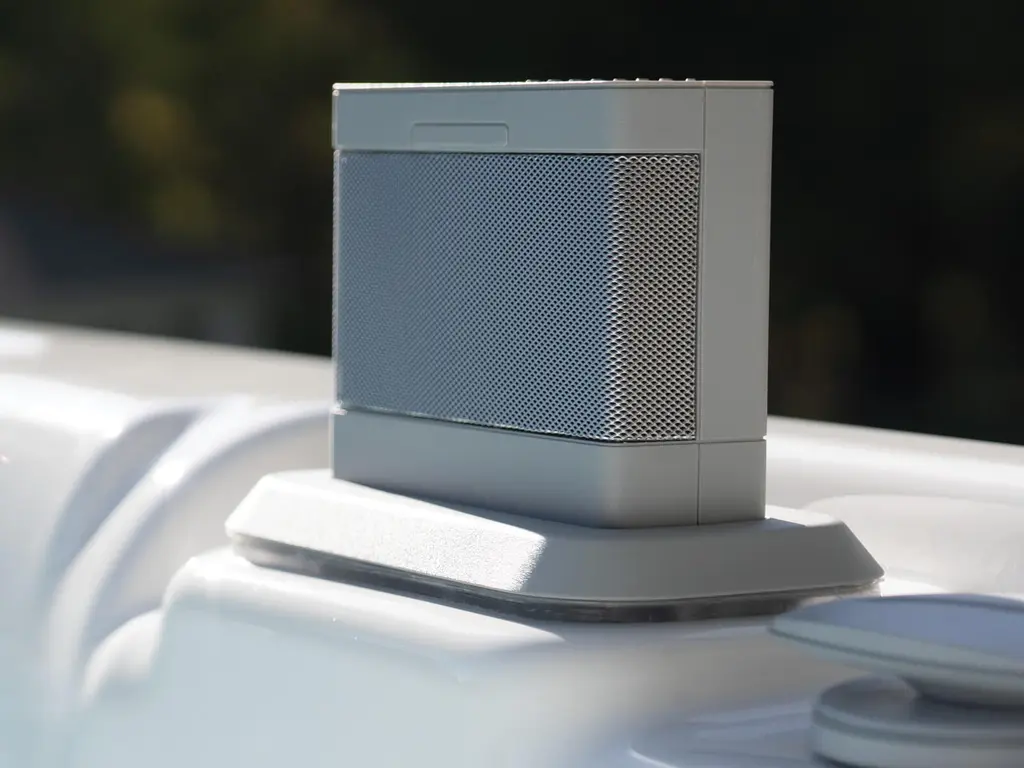

Wireless Sound System
230

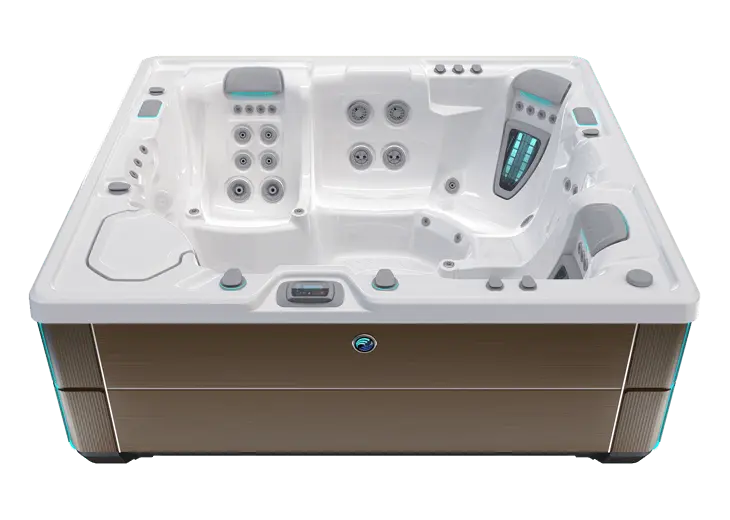

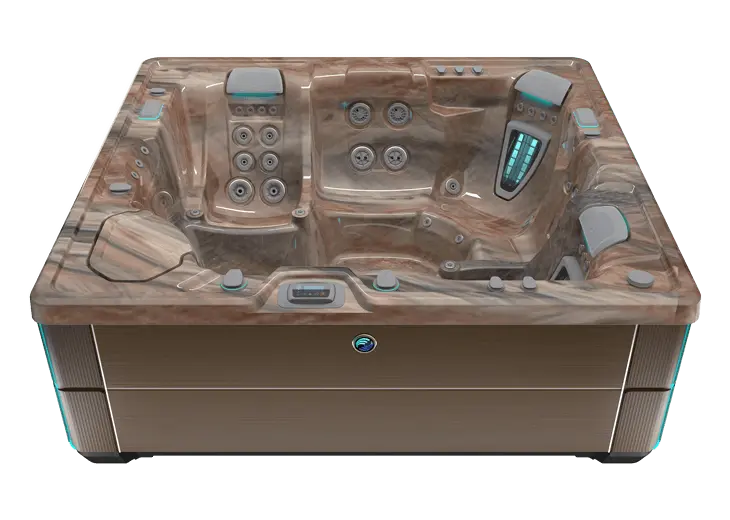

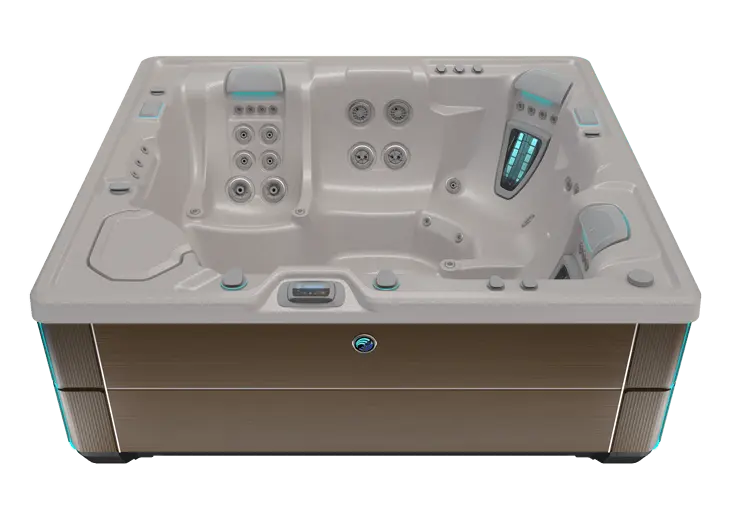

Java

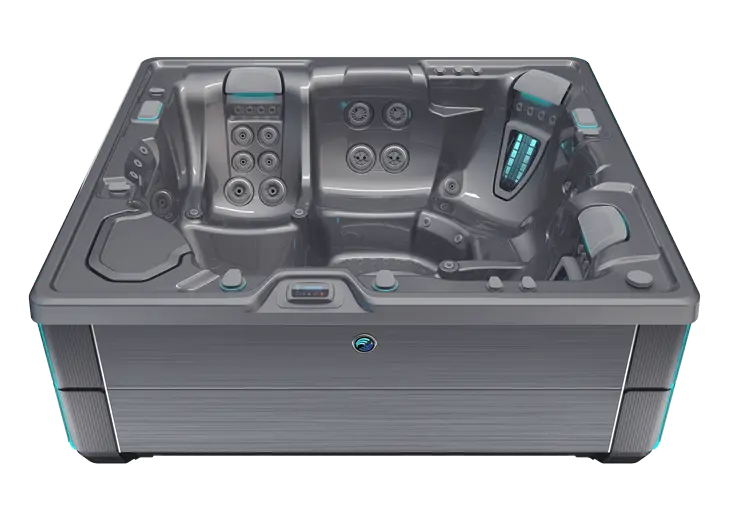

Charcoal

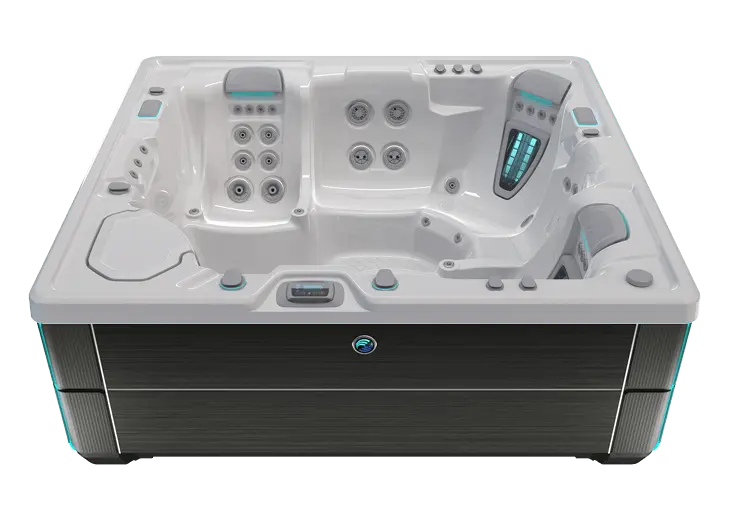

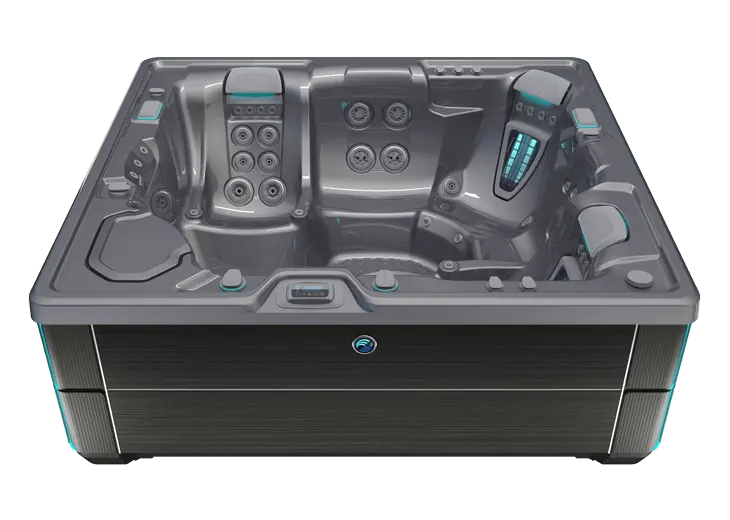

Blackwood
Linen

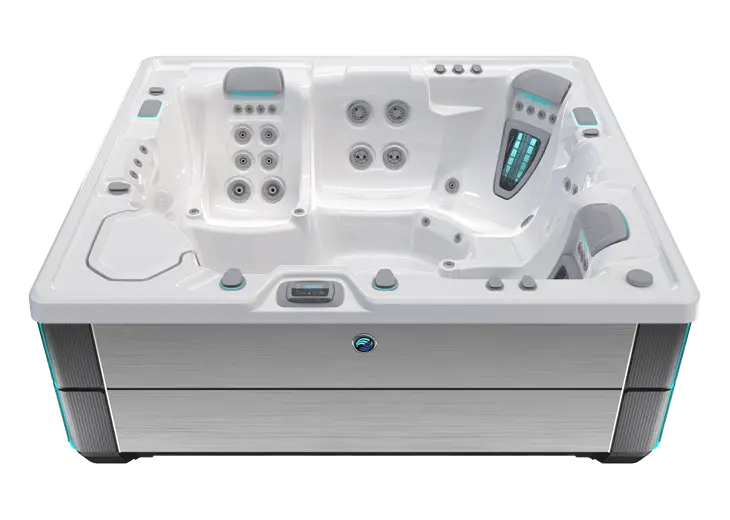

Brushed Nickel

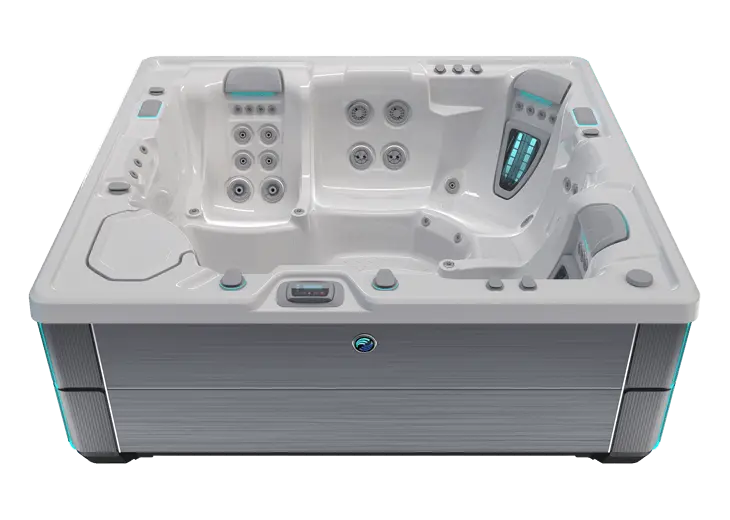

Alpine White
Ice Gray

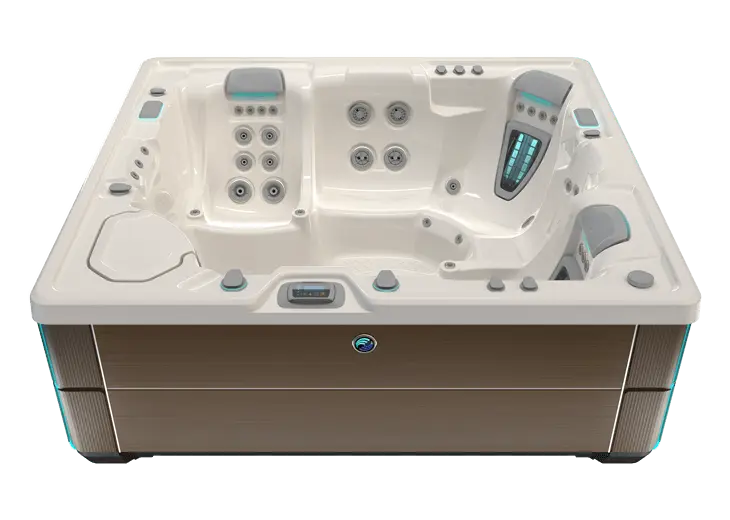

Ivory

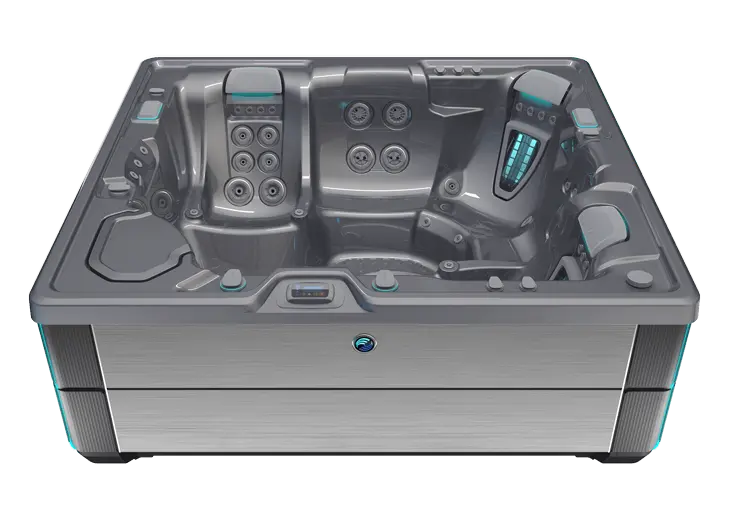

Platinum
Pebble

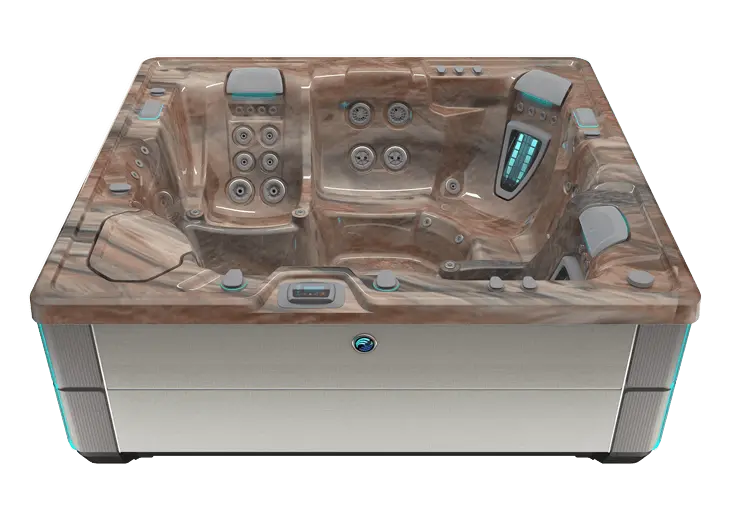

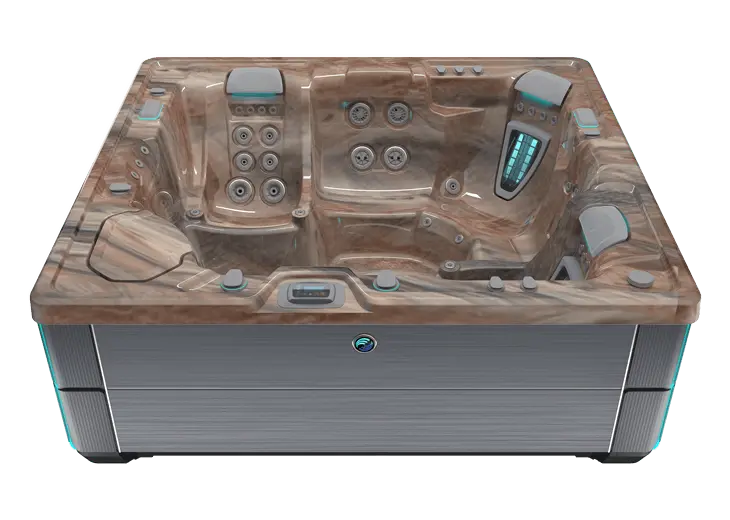

Tuscan Sun
Vinyl: Nutmeg or Graphite
Polyester: Black or Gray
CoolZone™

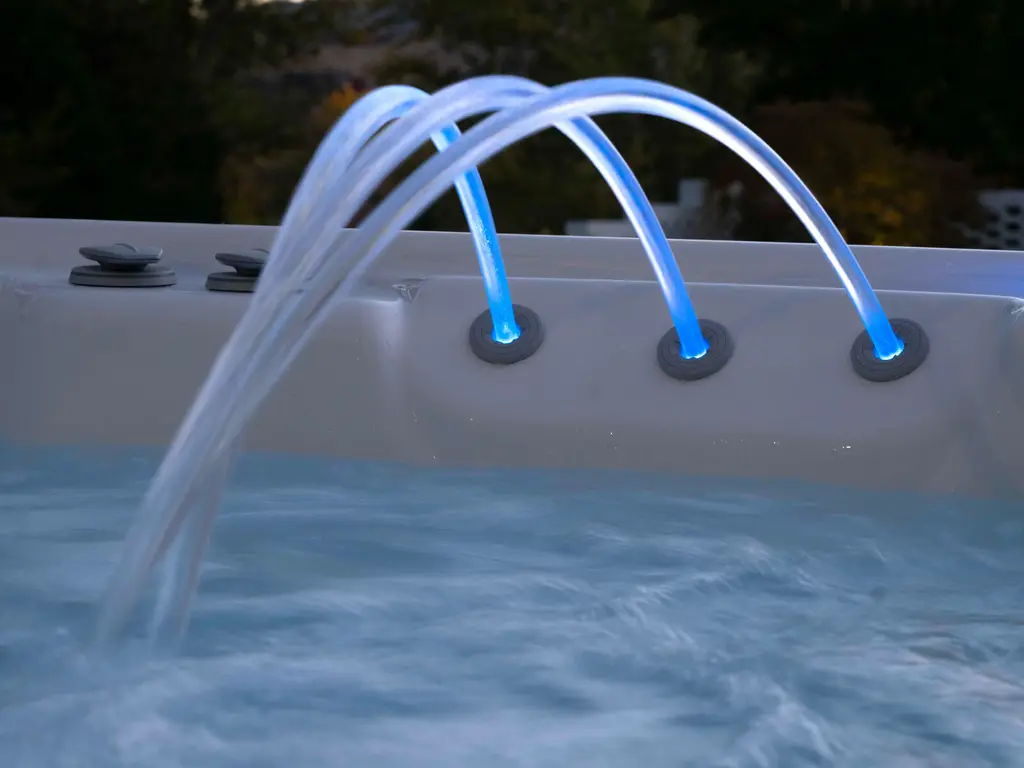

BellFontana® with 3 illuminated arcs of water
Shaped to comfortably cradle your body for a long relaxing soak.
Upright to support your back plus extra room to change your position for more hydrotherapy options.
Reclined and contoured so you can lay back with your legs extended.

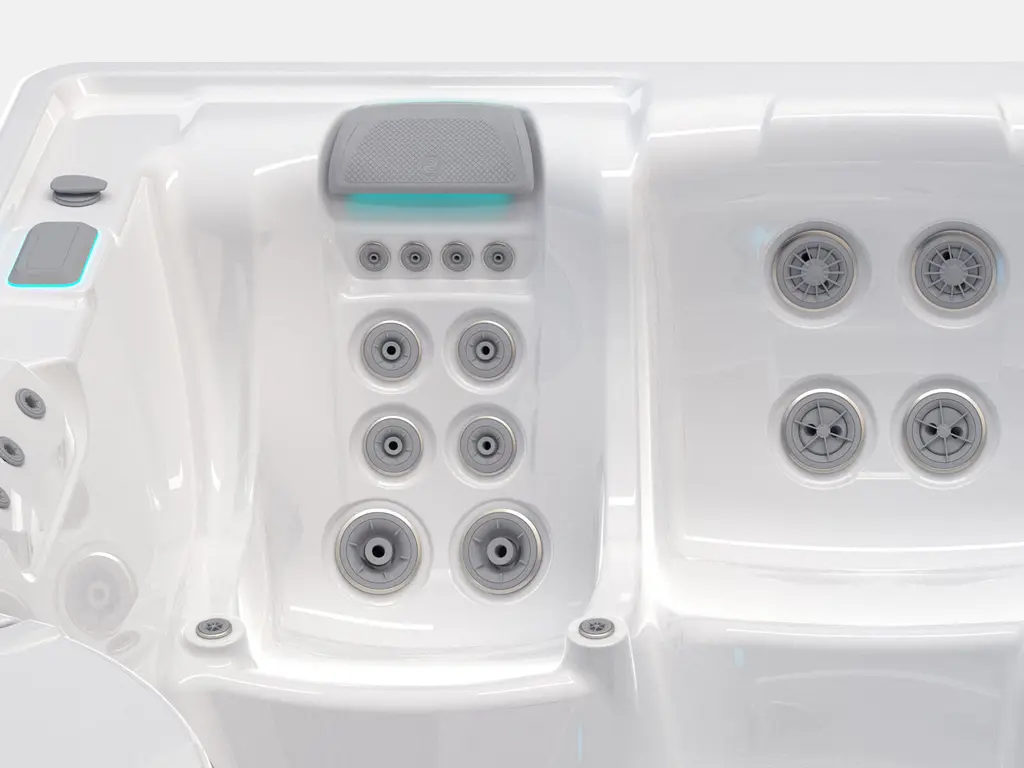

Adjustable up, down, right and left for a pinpoint muscle treatment and targeted massage right where you want it.

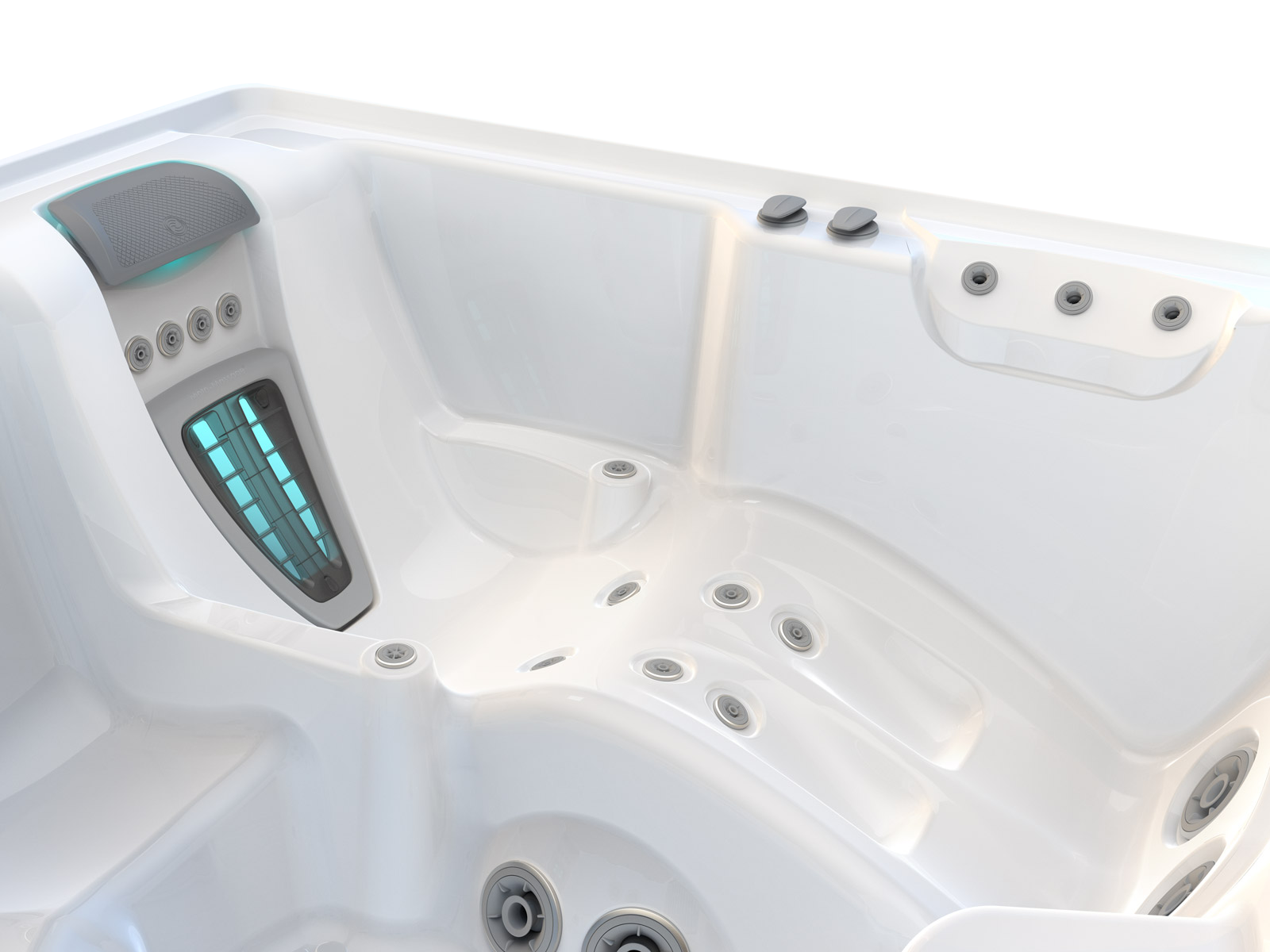

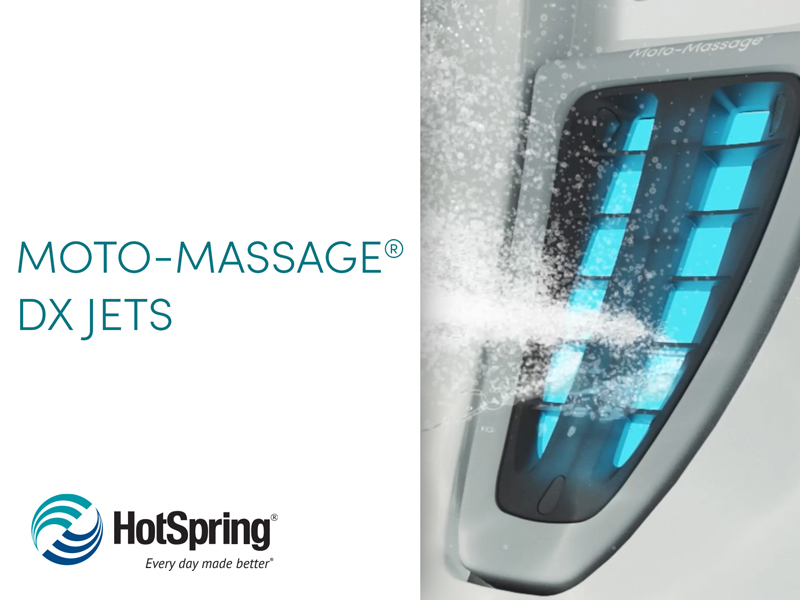

Two moving streams of water sweep up and down the length of your back for an unparalleled massage experience.
Mid-sized jets with directional adjustment for personalized massage where you need it. Personalize with ComfortControl®.
Adjustable directional jets provide a powerful stream for a deep and soothing massage. Personalize with ComfortControl®.
Like the fingers of a masseuse, these pinpoint rotating jets give you a soothing massage on targeted areas.
A broad stream of water spins through multiple openings for a powerful pulsing effect. Personalize with ComfortControl®.
Two large jet streams spin in a rhythmic circular motion for a deep muscle massage. Personalize with ComfortControl®.
Deeply sculpted to wrap you in relaxing comfort and a full-body experience.
Adjust the large stream up, down, left and right for comfort right where you want it. Personalize with ComfortControl®.
