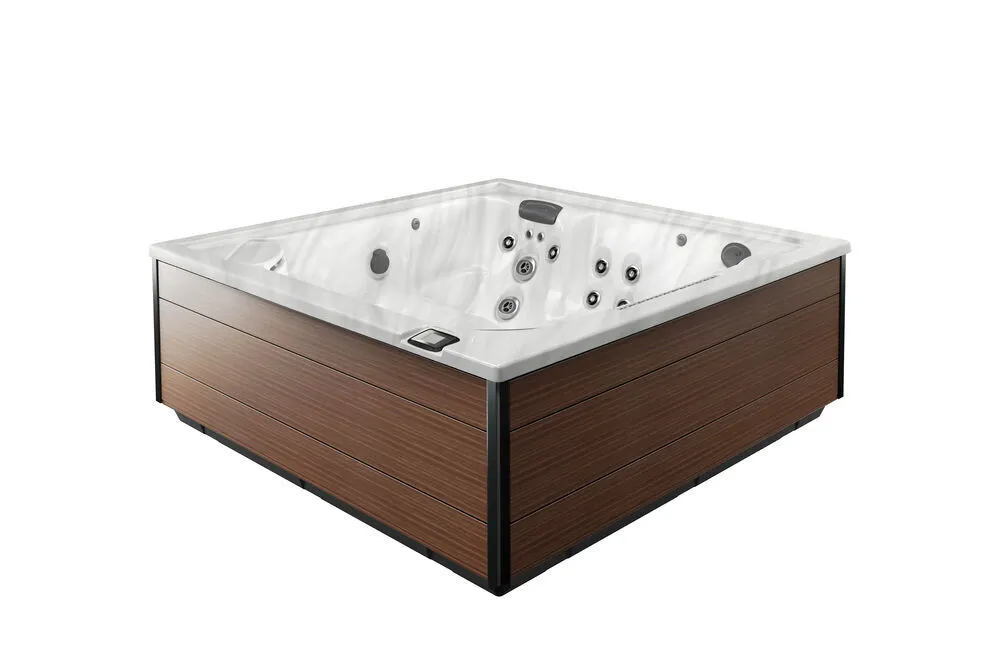

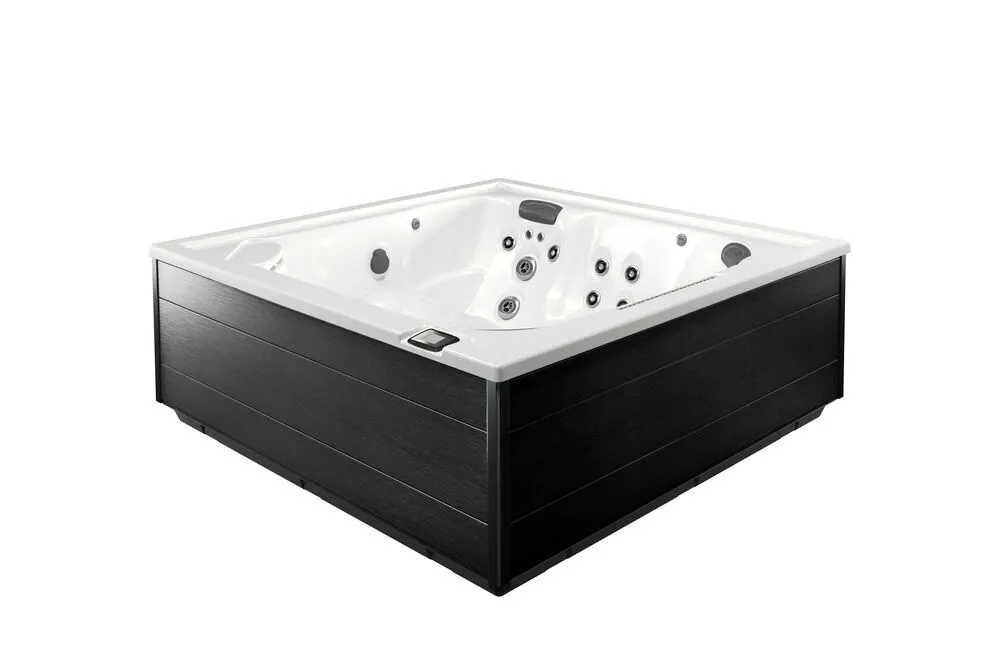

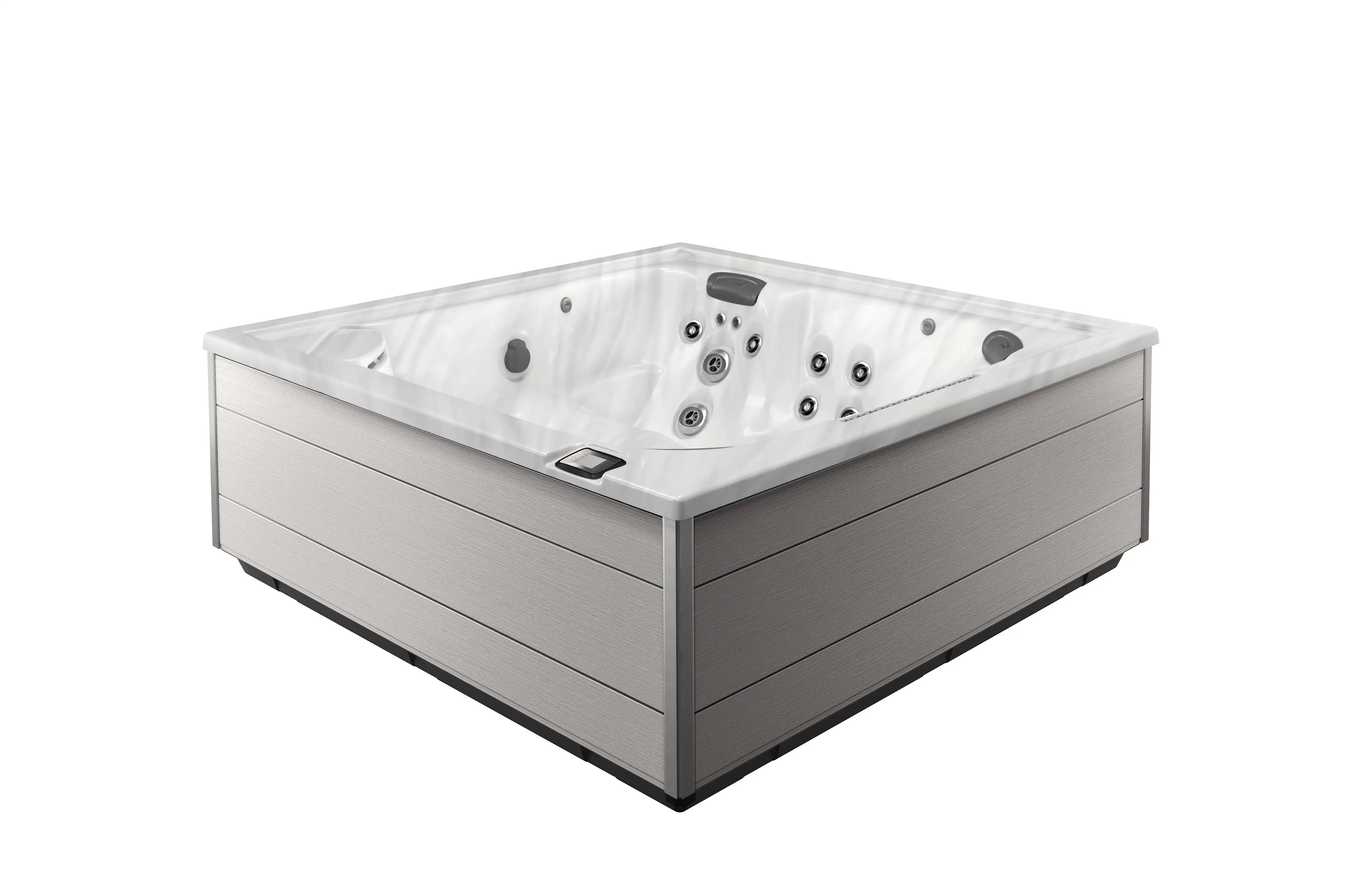

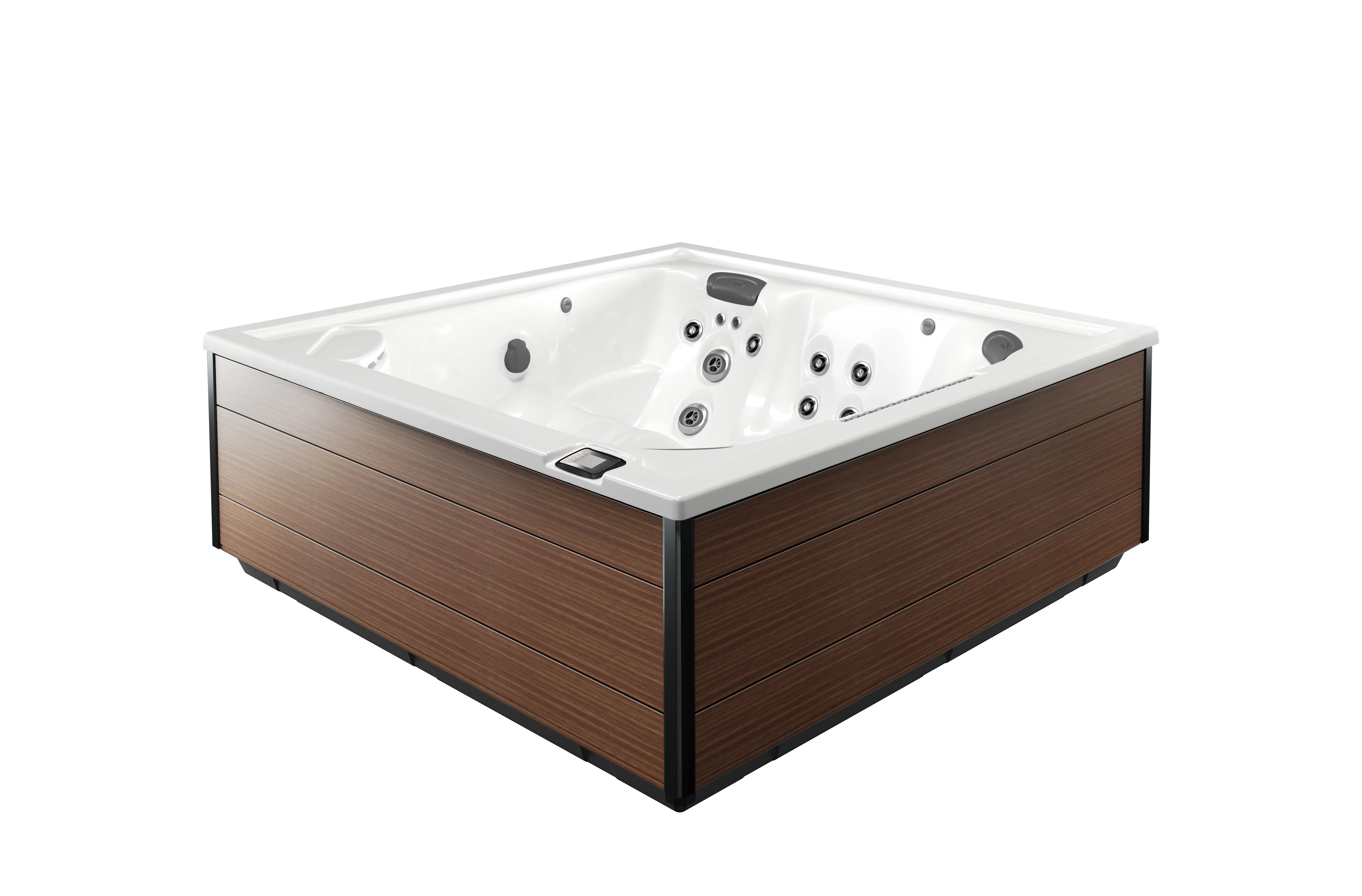

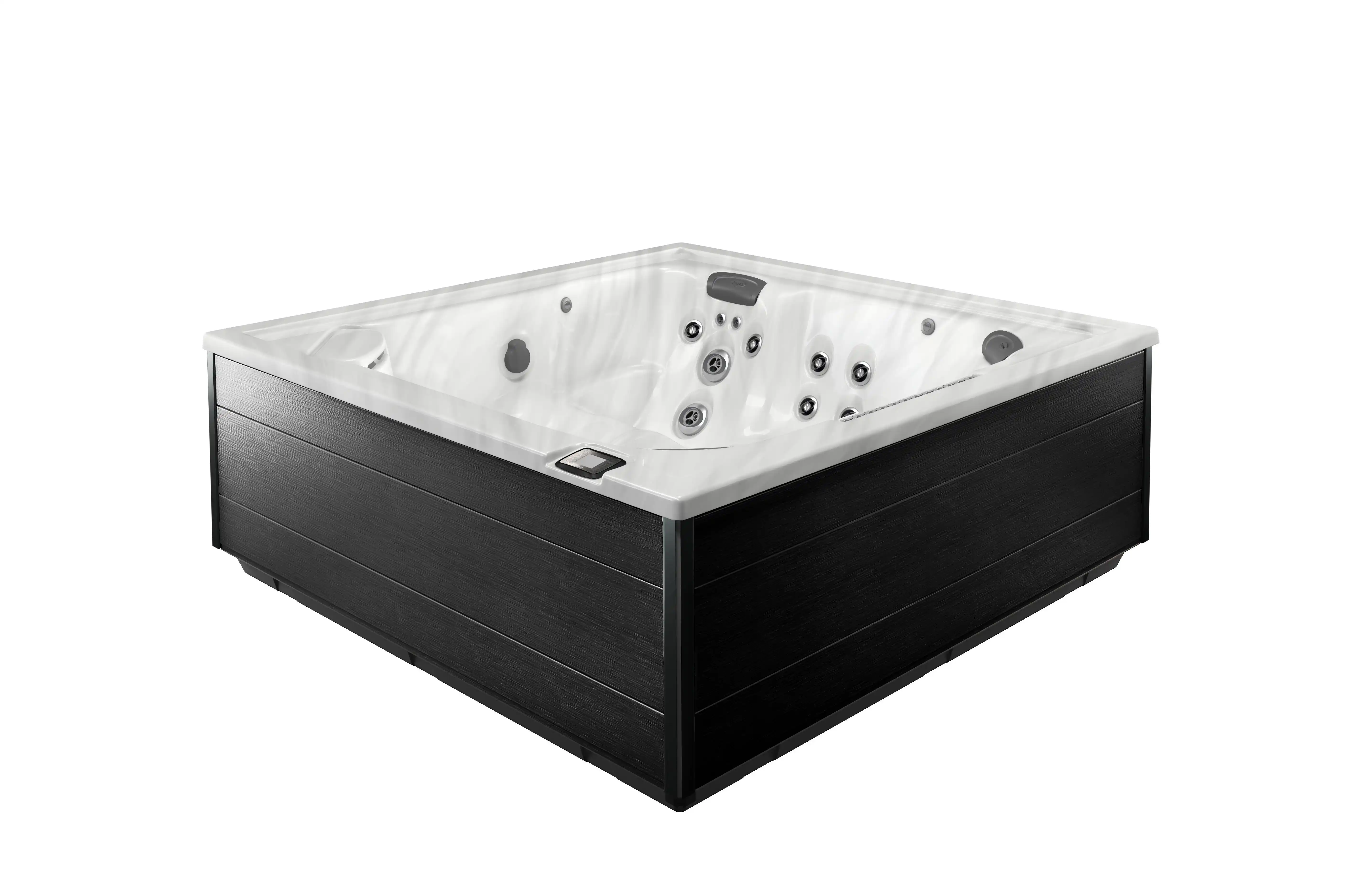

J-LXL®

Jacuzzi Spas

With our patent-pending IR and Red Light therapy taking hydrotherapy to the next level, we’re leading the industry once again by creating the ultimate wellness experience. This modern design touts stunning features, from the sleek exterior and infinity-edge waterfall, to multi-layer insulation for superior energy efficiency. Features a full-body lounge seat as part of six ergonomic seating options.

Now Available.

Introducing a breakthrough in clean water. True Water™ brings the power of nanobubble technology to home spas. Trillions of oxygen-filled nanobubbles continuously scrub away contaminants to deliver clean, clear, sparkling water. These bubbles remain in the water for days, cleaning every part of your spa. Optional upgrade.

Get Pricing
Specs Additional Specs Jet Systems More Details Features
Dimensions
89" x 89" x 34"
Volume
330 Gallons
Dry Weight
914 lbs / 415 kgs
Jets
39
Primary Pump
1-Speed, 5.1 HP brake, 2.5 HP continuous, 56 Frame
Secondary Pump
1-Speed, 5.1 HP brake, 2.5 HP continuous, 56 Frame
Filters
3
Seat Jets
Lounge
Water Management System
ClearRay Active Oxygen® System
Shape
Square
Diverter Valves
1
Filter Type
One ProClarity® 40 ft2 filter cartridge and 1 ProClarity® depth load filter on 8-hour circulation pump; one ProCatch® bag with ProClear® 60 ft2 filter; Floating Weir; True™ Water System (Must order with SmartTub® option)
Electrical
North America (60 Hz): 240 VAC@40A, 50A, or 60A Export (50 Hz): 220-240 VAC@1x32A, 1x20A/1x16A, or 3x16A, or suitably rated circuit breaker to comply with local electrical codes. Certain countries may require dual power inputs; two GFCI RCD breakers are required for this configuration.
Circulation Pump
Yes
Capacity
445
###additionalSpecs###
###jetSystemImage###
###jetsystems###

With our patent pending Infrared and Red Light therapy taking hydrotherapy to the next level, we are leading the industry once again by creating the ultimate wellness experience. Jacuzzi is the first and only brand to offer Infrared and Red Light therapy across a range of wellness products, from saunas, to swim spas, to hot tubs. Premiering in the J-LX Collection, the FX-IR Seat combines patent pending Infrared and Red Light therapy with hydromassage for unmatched rejuvenation.

  • FX-IR Therapy seat combines powerful hydromassage with Infrared and Red Light Therapy on your lower back
  • Strategically placed jets target specific muscle groups with customizable flow and feel at each jet

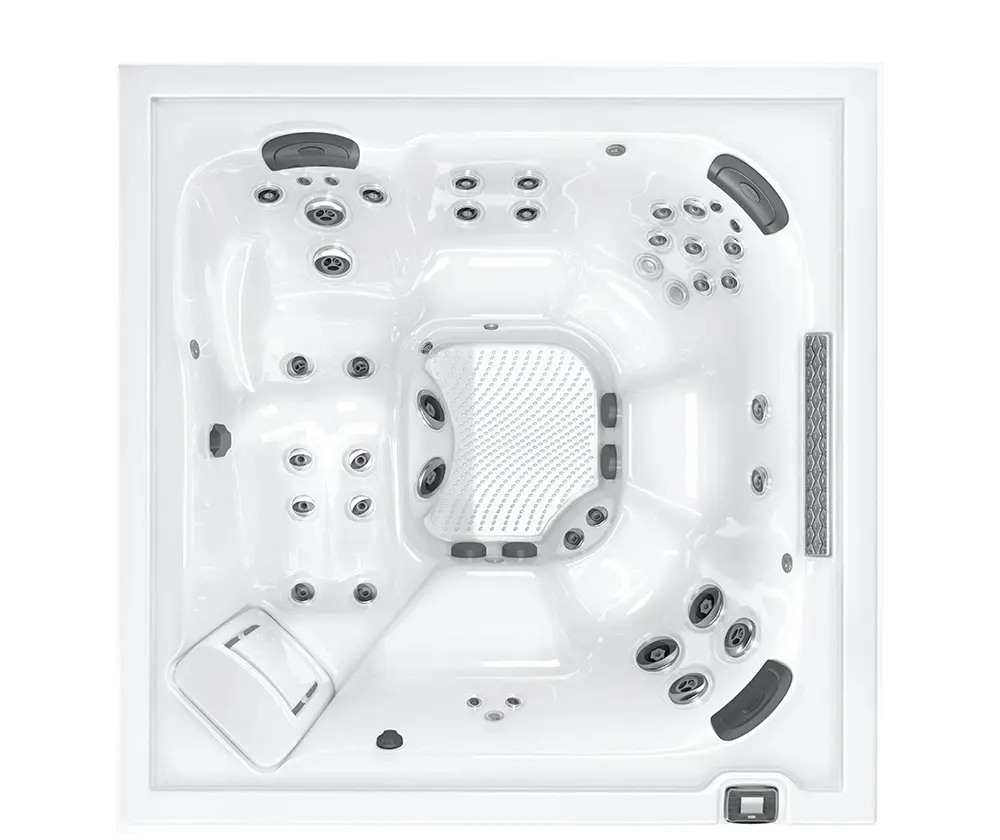

  • Six ergonomic seating options and a lounge seat that cradles the contours of your body for the most relaxing experience

Introducing a breakthrough in clean water.

True Water brings the power of nanobubble technology to home spas. Trillions of oxygen filled nanobubbles continuously scrub away contaminants to deliver clean, clear, sparkling water. These bubbles remain in the water for days, cleaning every part of your spa.

Contaminants include dirt and grit.

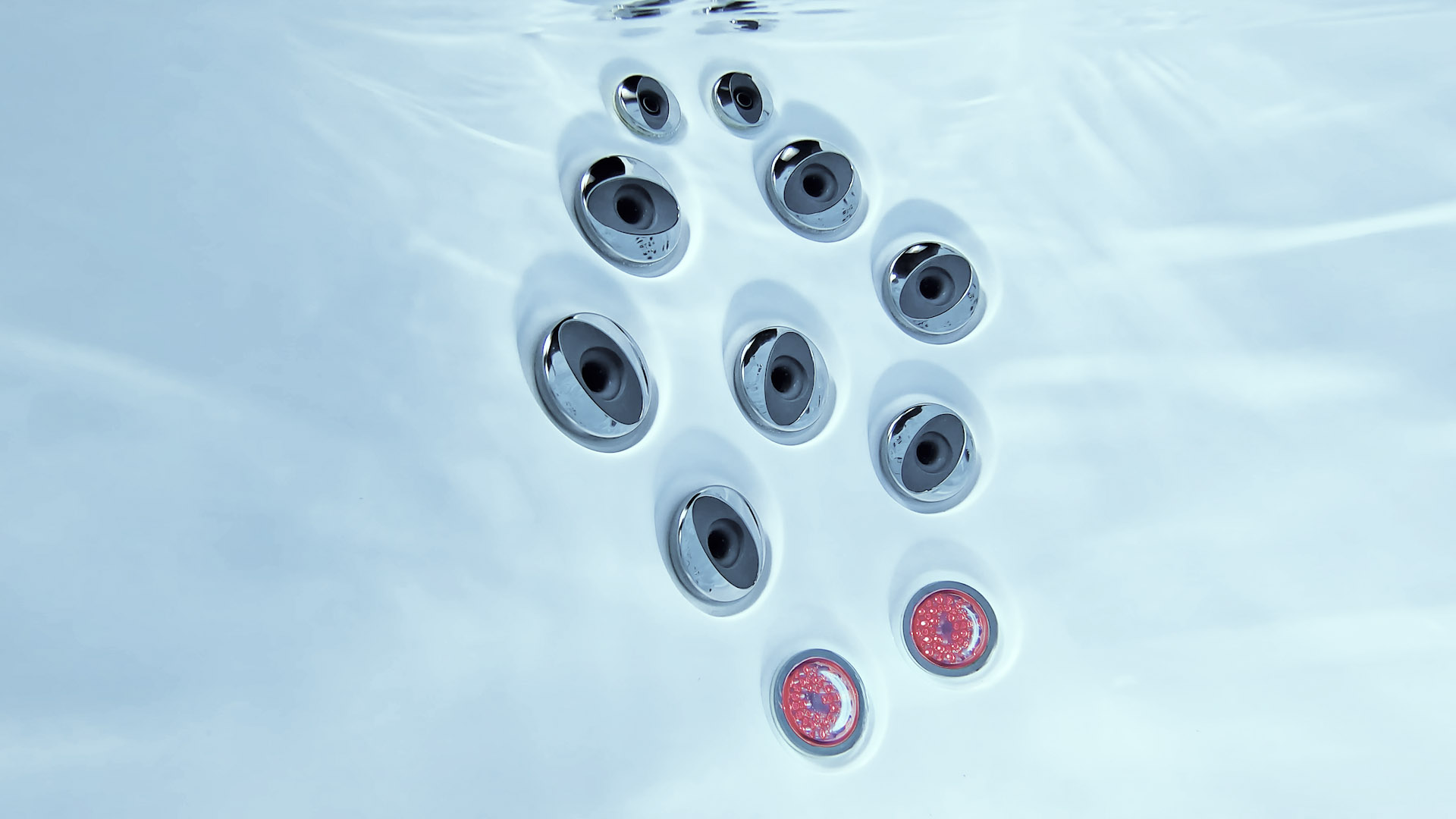

IR + RED LIGHT THERAPY
The therapeutic benefits of hydrotherapy. The rejuvenating power of Infrared. The regenerative qualities of Red Light. All working together deep beneath the skin’s surface.
IR + RED LIGHT THERAPY

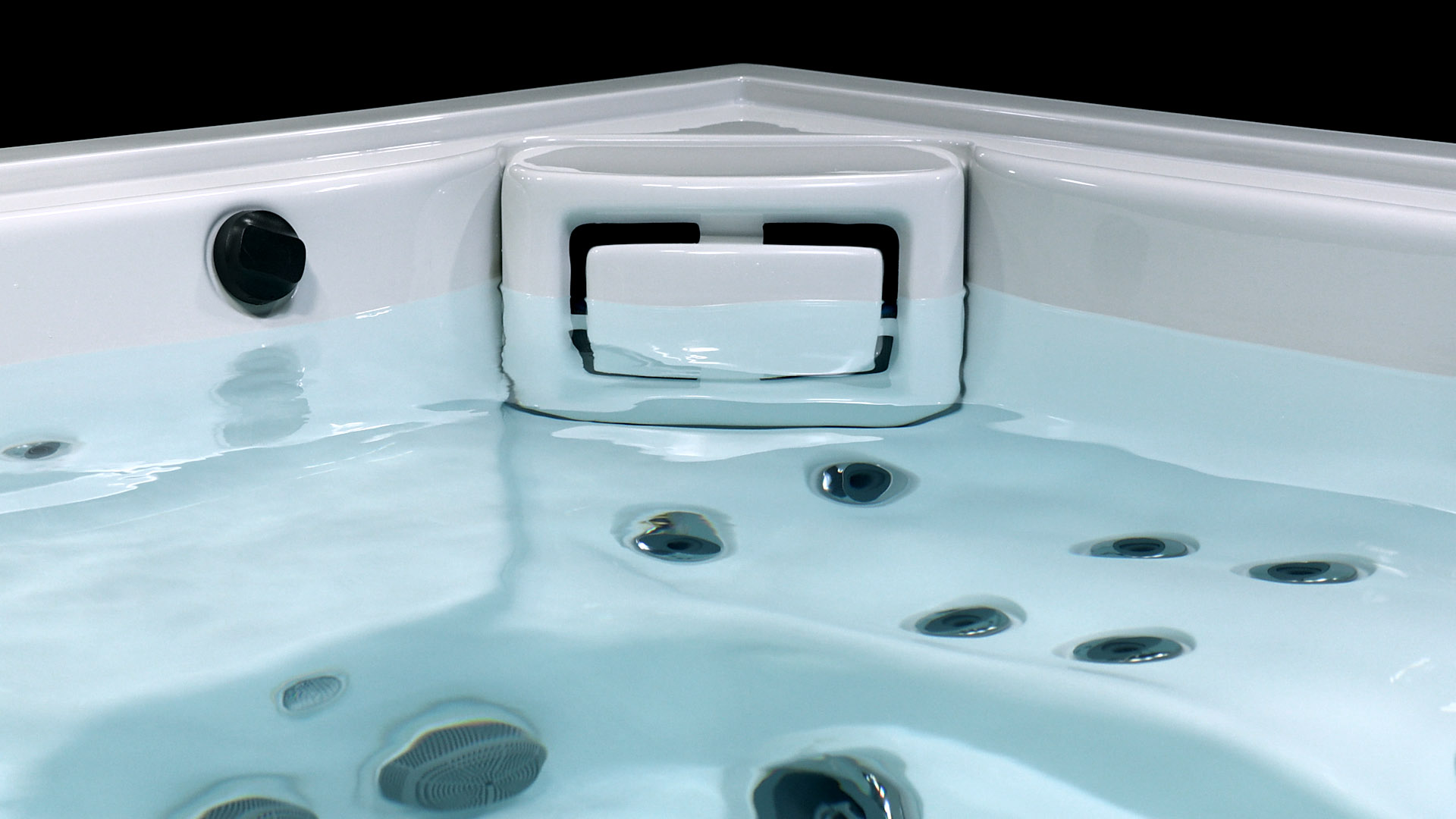

CLEAN* WATER, LESS EFFORT
We’ve combined ozone and UV-C technology to provide a hands-free approach to water care. Our 5-Stage filtration process means fewer water changes and less effort for you. *Clean is defined as the removal of microscopic (down to 3 micron level, varies by model) debris from the water. The CLEARRAY Active Oxygen® System utilizes various technologies to achieve cleanliness. One of them is ozone, which aids in the grouping of smaller debris to form larger clusters that can be more easily captured in the filtration process.
CLEAN* WATER, LESS EFFORT

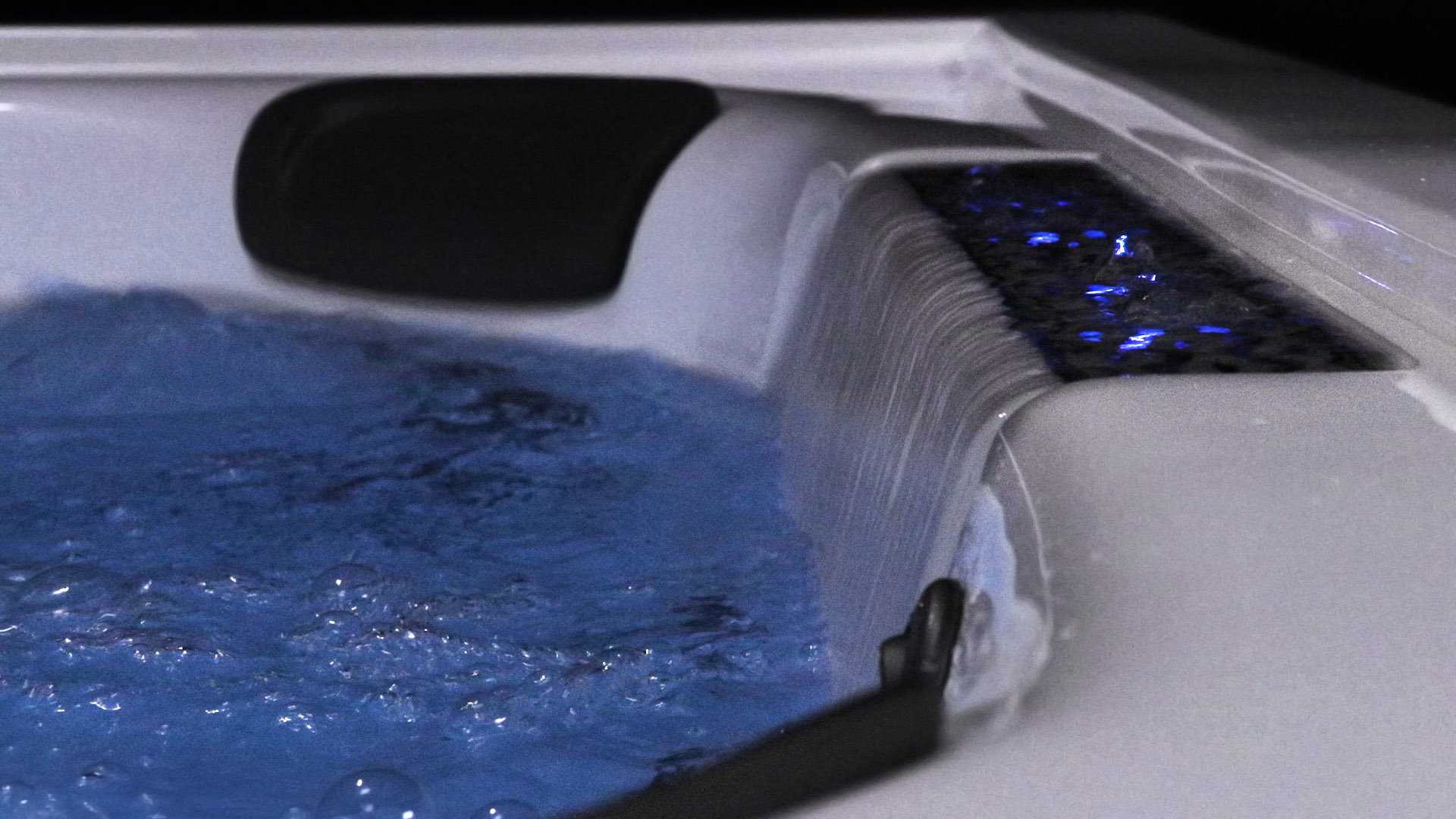

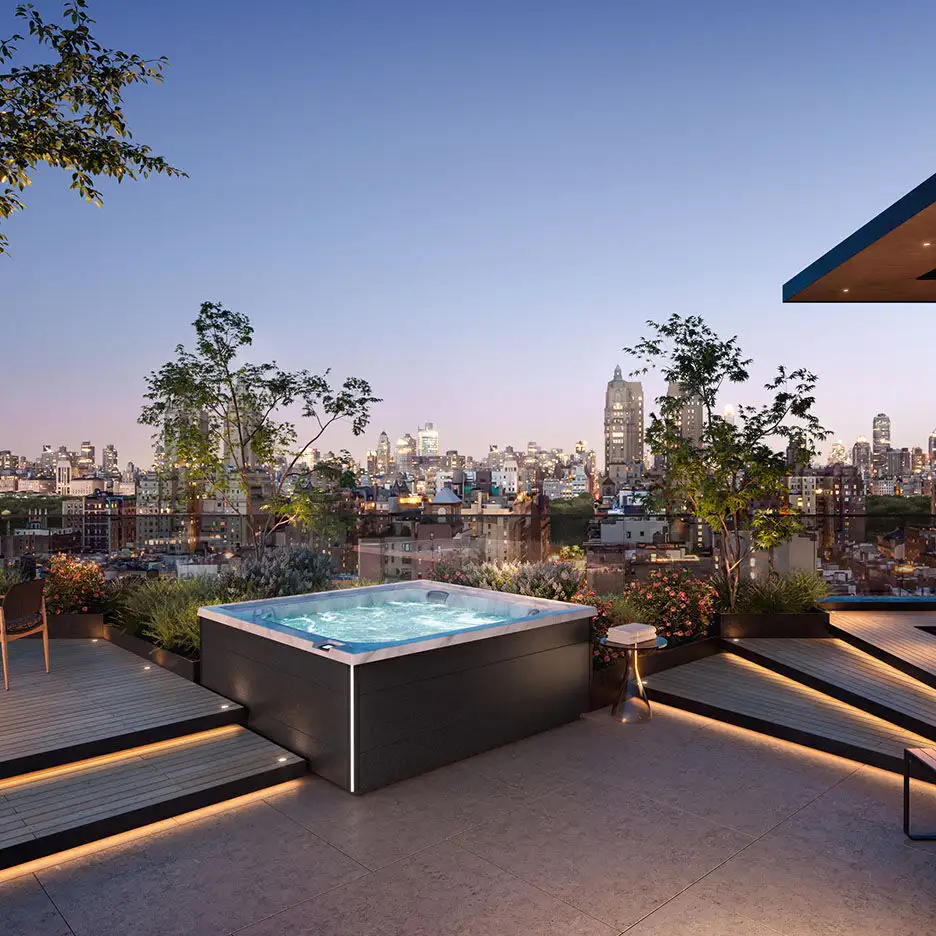

FULL-FEATURED MODERN DESIGN
The geometric form enhances your outdoor space with crisp lines and dramatic exterior lighting. Once inside, the gentle waterfall takes over your senses to round out a soothing transformational experience.
FULL-FEATURED MODERN DESIGN

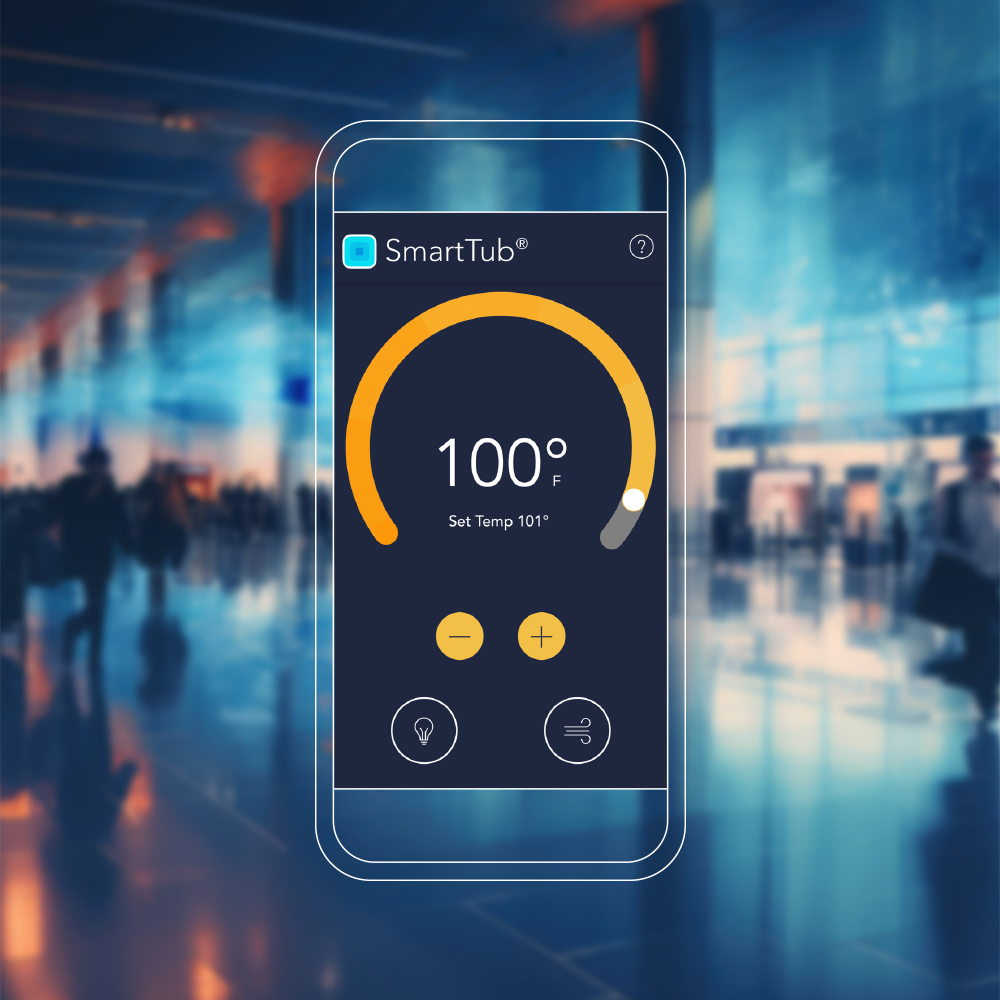

PEACE OF MIND FROM ANYWHERE
Our patented, industry-first SmartTub® system provides remote monitoring and control through phones, smart devices, and Siri® and Alexa® wearables anywhere in the world.** All with software updates and a cellular connection that’s simpler and more reliable than Wi-Fi. Enjoyment made easy. **Amazon, Alexa, Google, Google Assistant, Apple and Siri are trademarks and registered trademarks of their respective owners.
PEACE OF MIND FROM ANYWHERE
