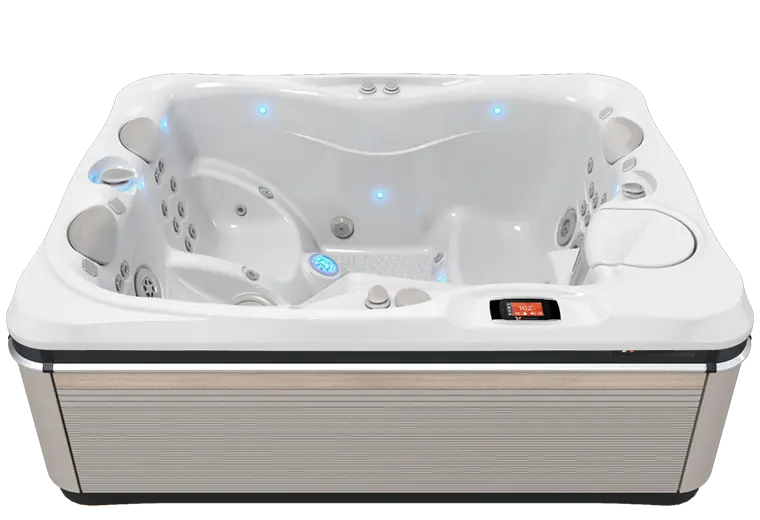

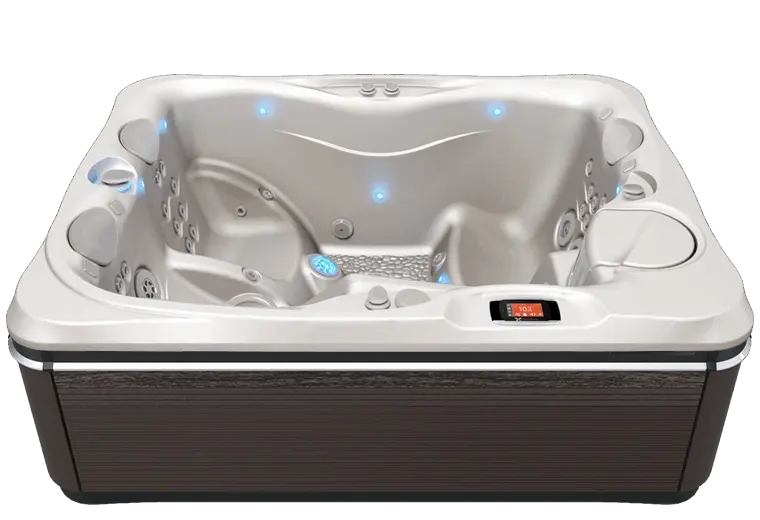

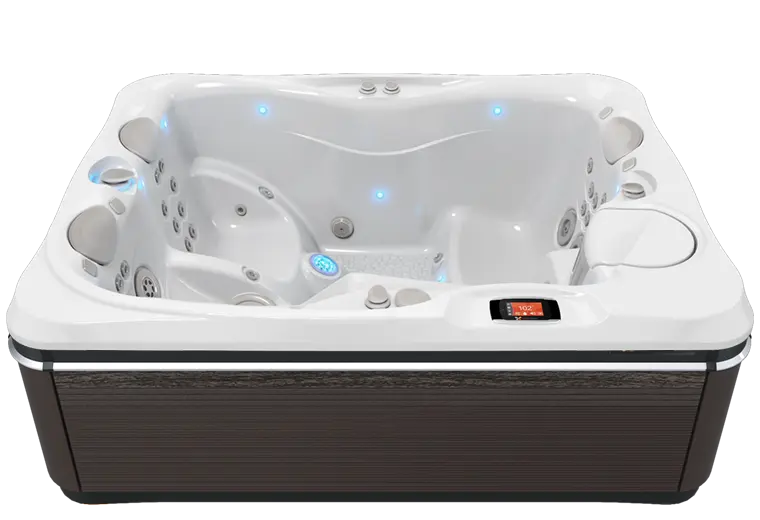

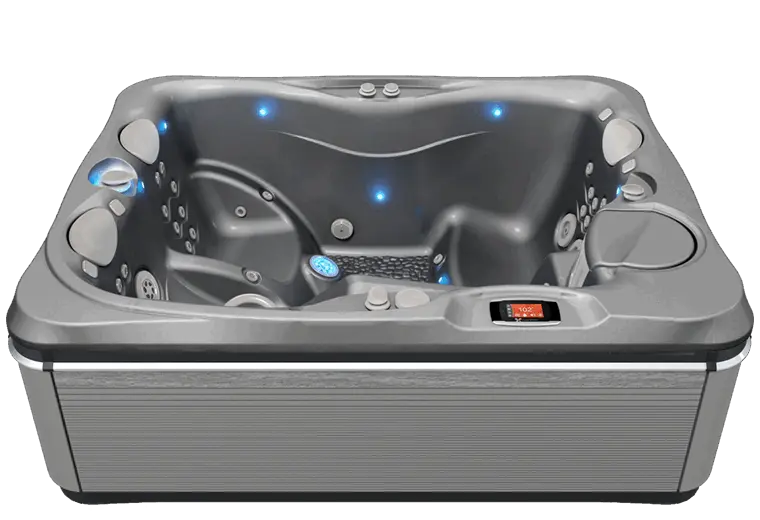

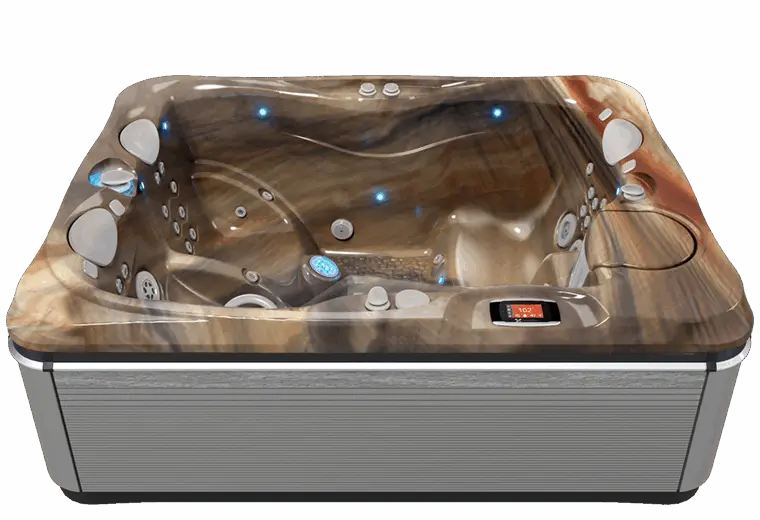

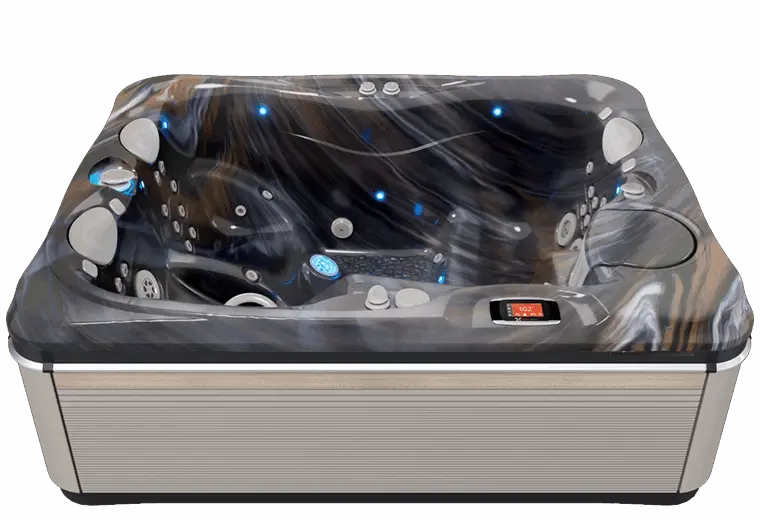

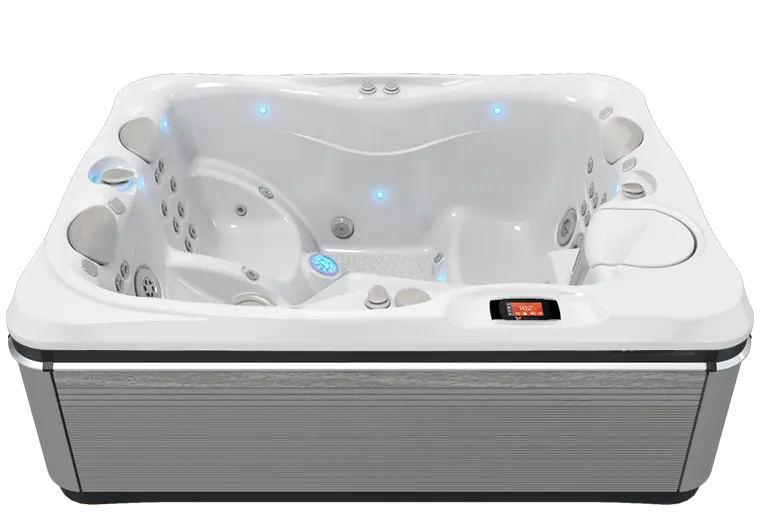

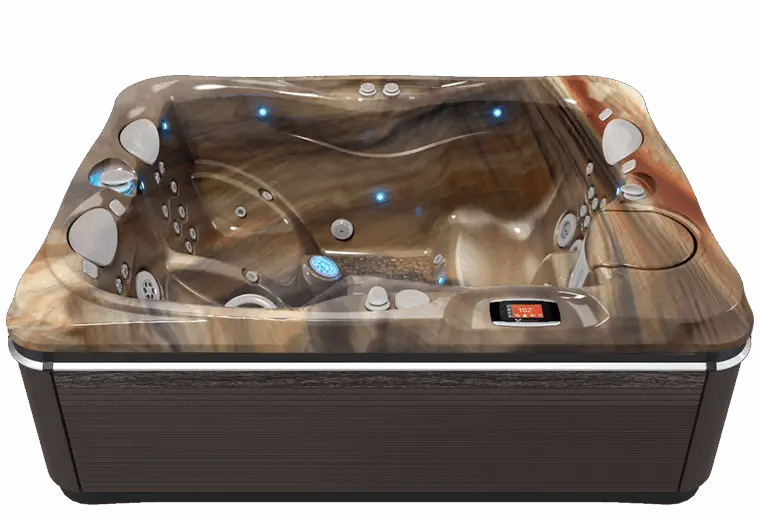

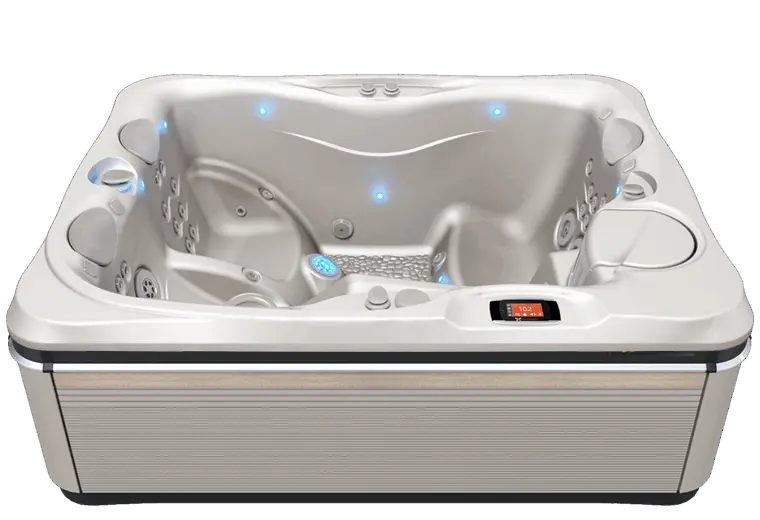

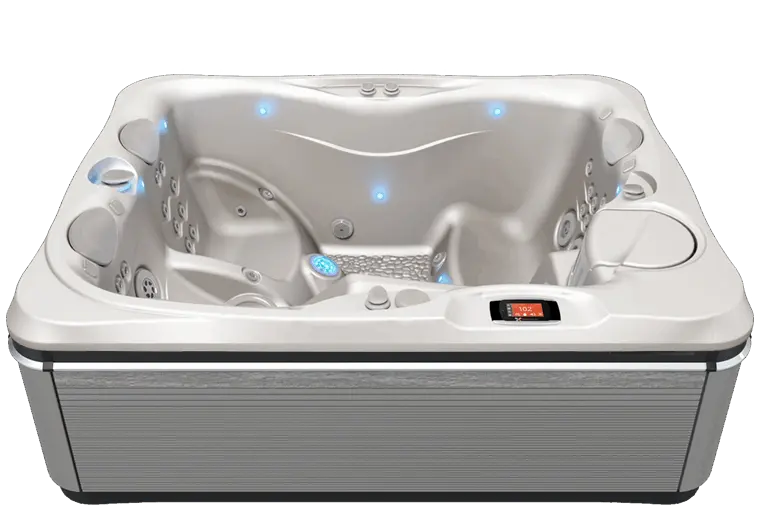

Ravello™
Caldera Spas
Compact without compromise. Designed to fit small spaces but with an interior that feels spacious, the Ravello is the perfect 3-person hot tub to provide the transformation you crave. The Ravello delivers the ultimate soaking experience with two powerful ReliaFlo pumps, 39 perfectly positioned jets and the UltraMassage® lounge that soothes muscles from head to toe.
7' x 5'6" x 33"
213cm x 168cm x 84cm
265 gallons / 1,025 liters
720 lbs. / 325 kg dry
3,460 lbs. / 1,590 kg filled
FreshWater® IQ System Included
N/A
Corona Discharge Ozone (Optional)
50 sq. ft. filter
EnergyPro® for quiet continuous filtration

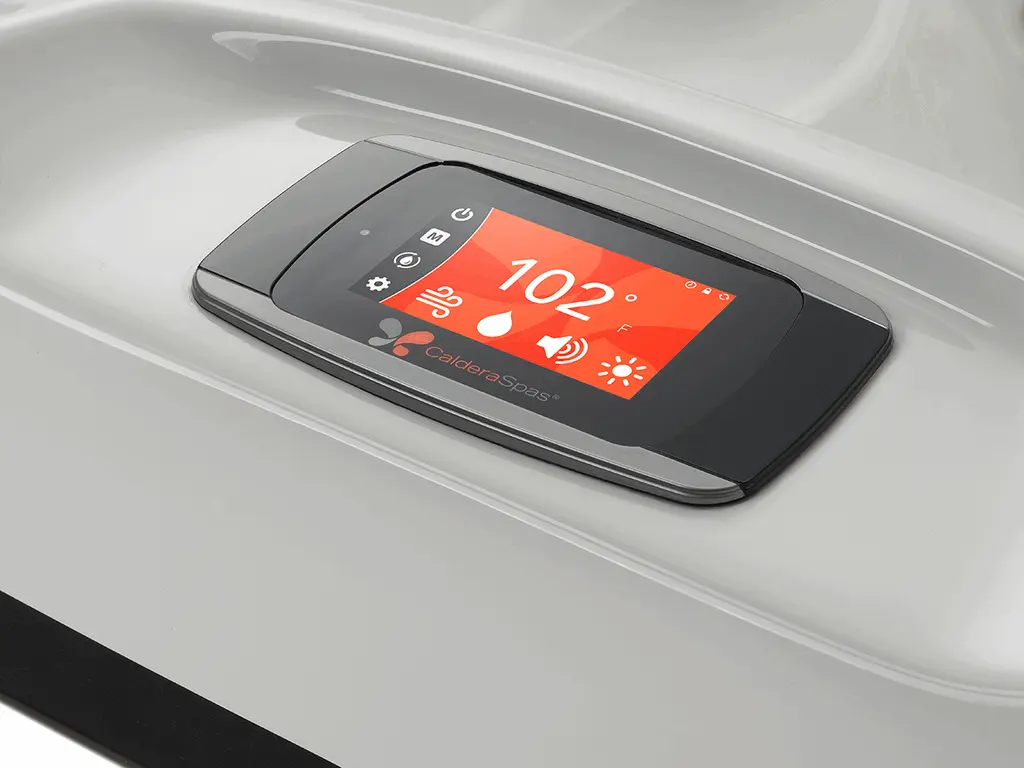

Advent® LCD Touchscreen 230v/50amp, 60Hz, Includes G.F.C.I. protected sub-panel
Fully-insulated with FiberCor® material, 2 lb. density, CEC-compliant
(Optional) Caldera Spas App, Powered by the Connected Spa Kit.
Storm, Chestnut, Black
2 ReliaFlo® Pumps; 1 Dual-Speed
2.5 HP (5.2BHP) & 1 Single-Speed 2.5HP (5.2 BHP)
EnergyPro® Heater (4,000 Watts)
230V / 50 amp
GFCI Sub-panel (50 amp) included
SpaGlo® Multi-Zone LED Lighting including
7 Points-of-Interior Lights & Exterior Light Bar
Diagnostic Logo Light mounted in Spacer (between shell and cabinet)
ABS Base Pan
WeatherPro™ 4” tapered custom fit with hinge seal
EcoTech® Plus
Java, Ash & Parchment
ProLift® III, or ProLift® II
Standard

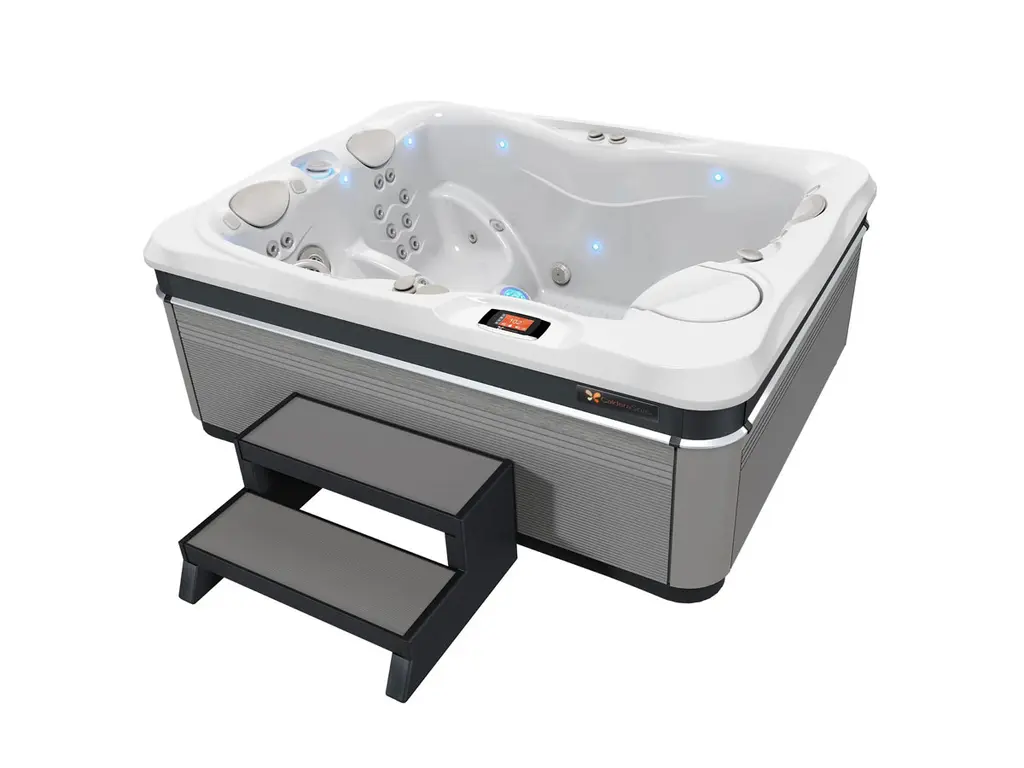

(Optional) Utopia® Step in Java, Ash & Parchment
N/A

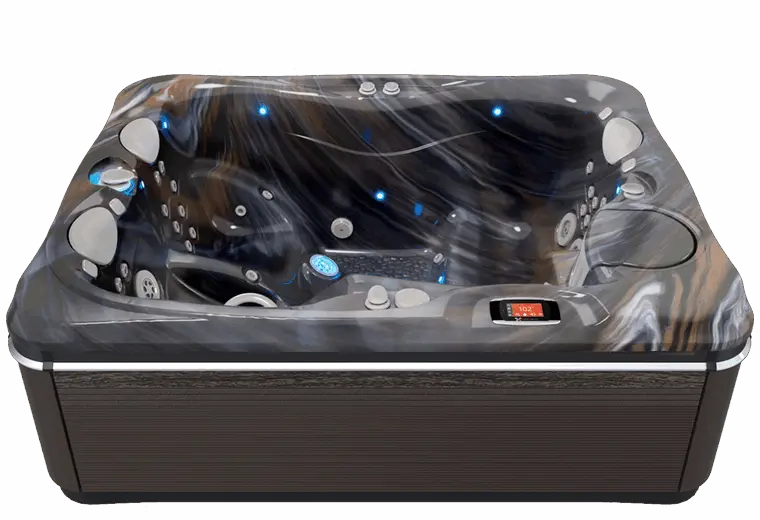

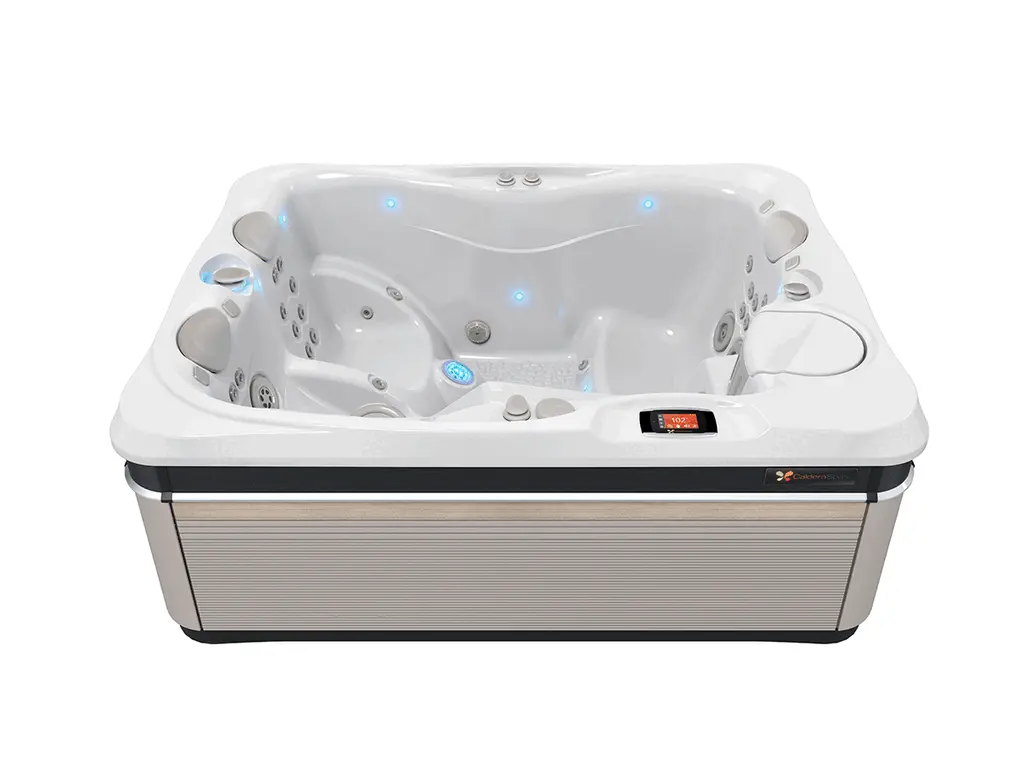

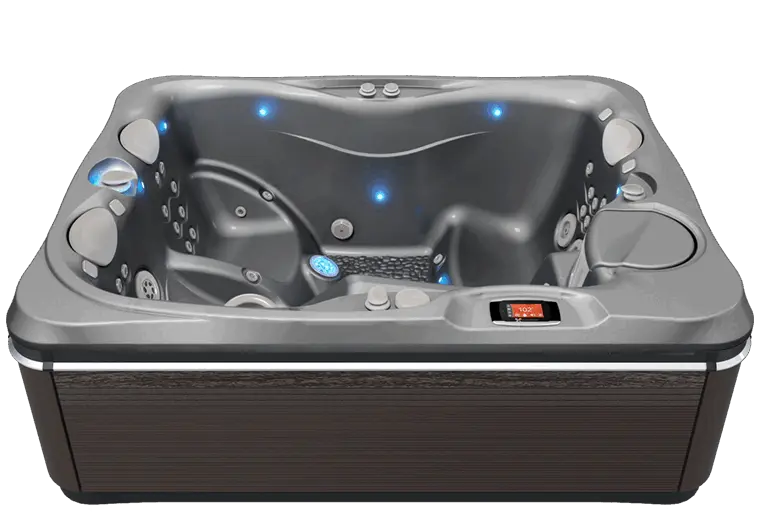

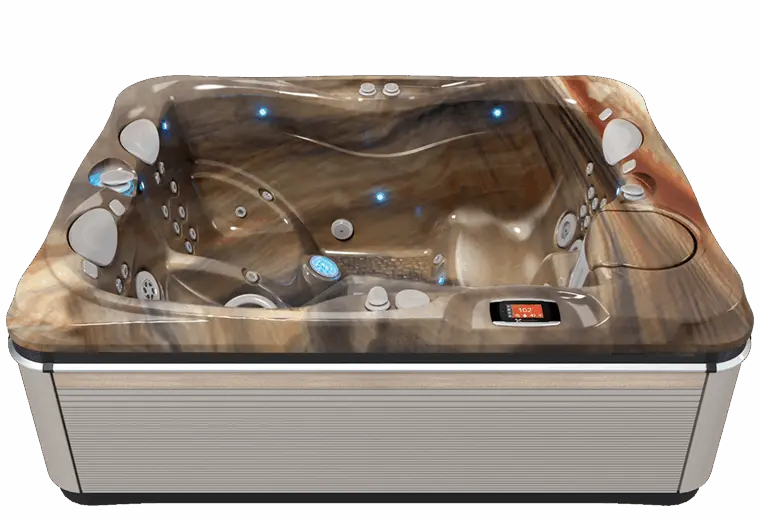

White Pearl, Tuscan Sun, Platinum, Arctic White, Midnight Canyon
Java, Ash & Parchment
(Optional) Wireless Bluetooth® Audio System

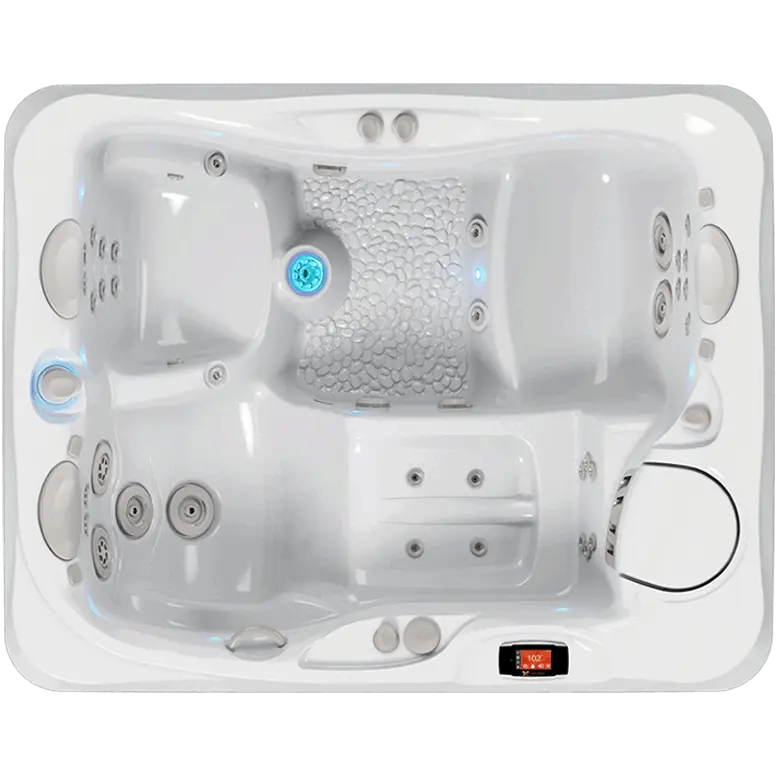

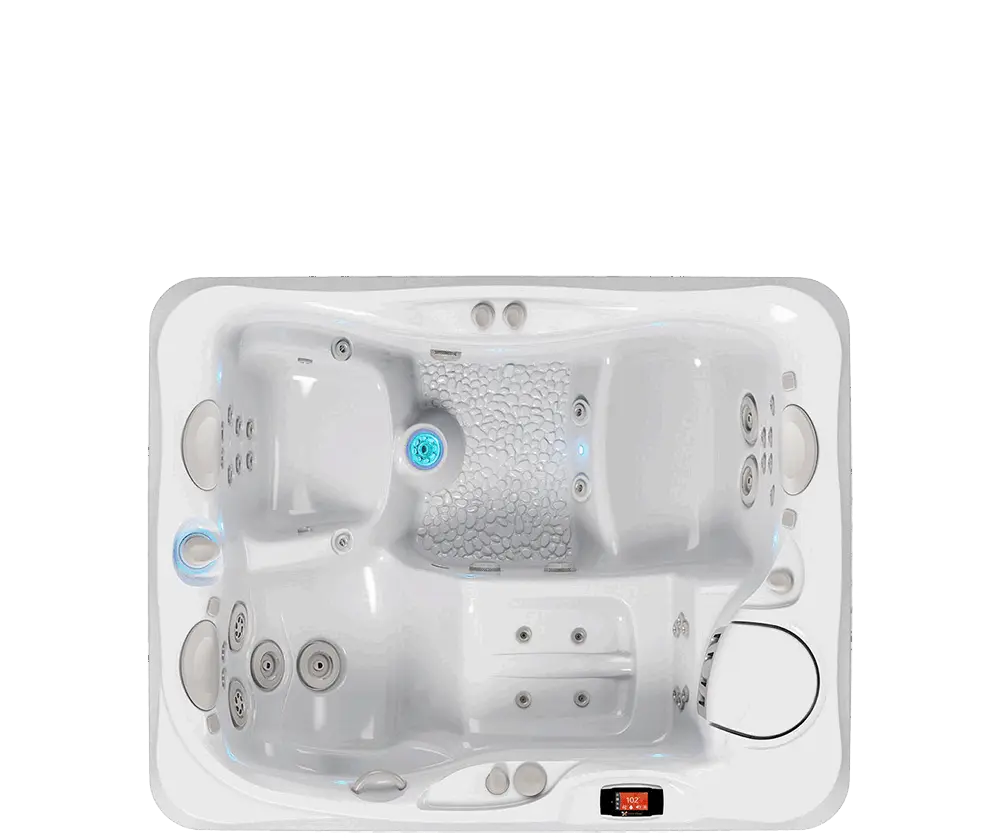

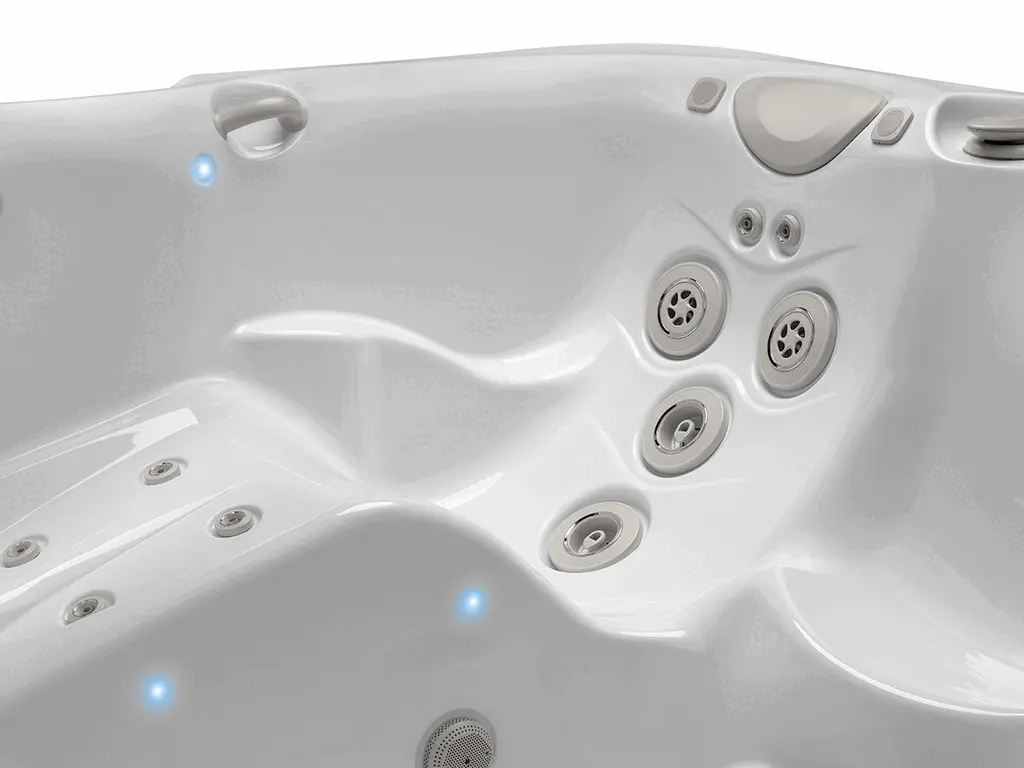

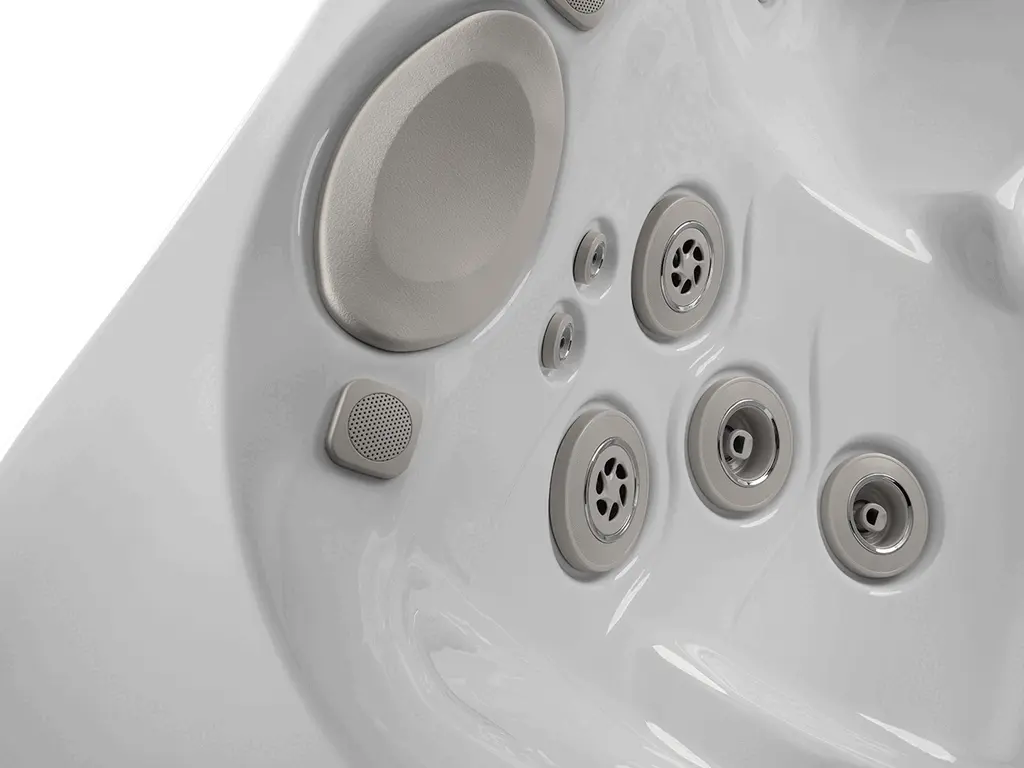

The Ultramassage Lounge targets your neck, shoulders, full back and calves, while the Sole Soothers jet clusters stimulate and revive the muscles in your feet.
A unique jet configuration relieves tension and pain in your back’s lumbar region, with calf jets to work the muscles in the lower leg.
A deep, penetrating massage to thighs, knees, calves and feet.
Multiple jets focus on large muscles in your back, while hip and wrist jets work on often-overlooked stress points which can help to enhance range of motion.
Every aspect of your spa’s construction—insulation, heater, circulation pump, and spa cover—work together to keep spa water hot and energy bills low.

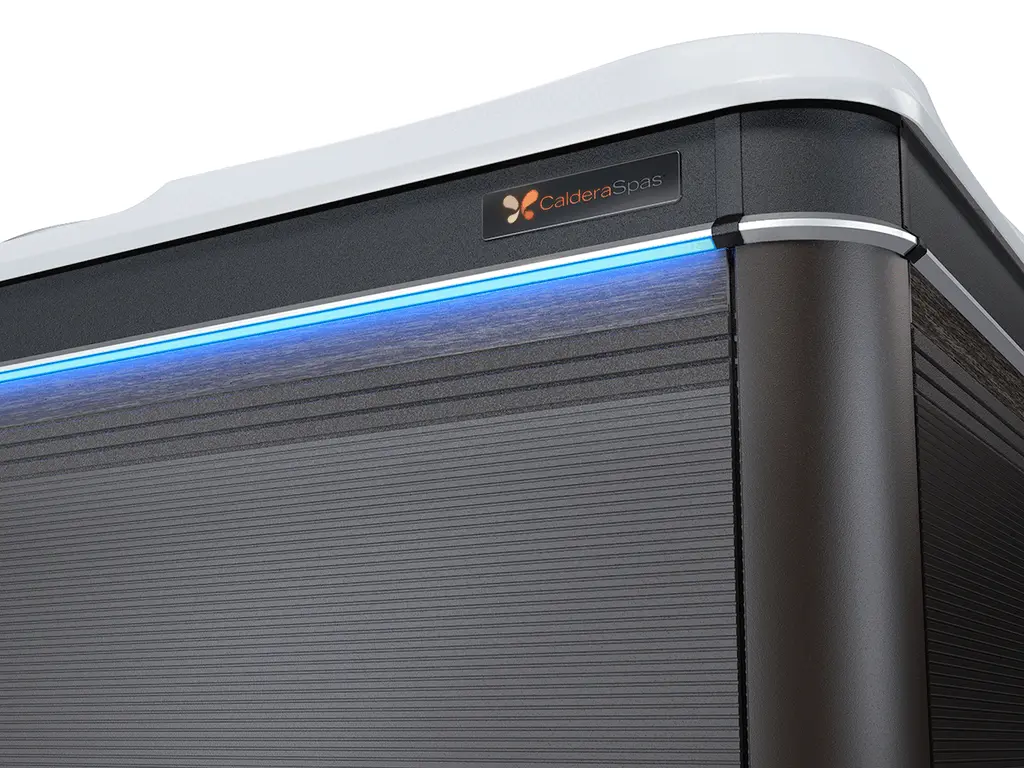

Our premium cabinet includes a modern black header, wood grain accent, stainless-steel trim and integrated LED light bar that will complement any backyard aesthetic.

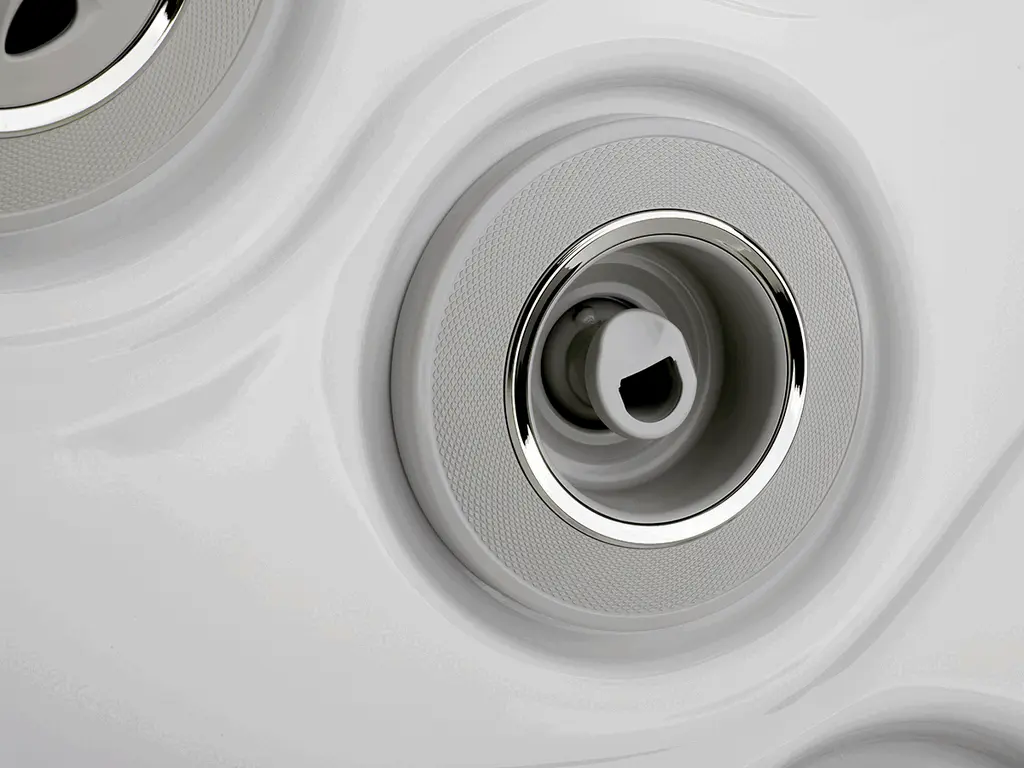

Customize your massage with six different jet sequences and three speeds.
