Vanguard®
Hot Spring® Spas

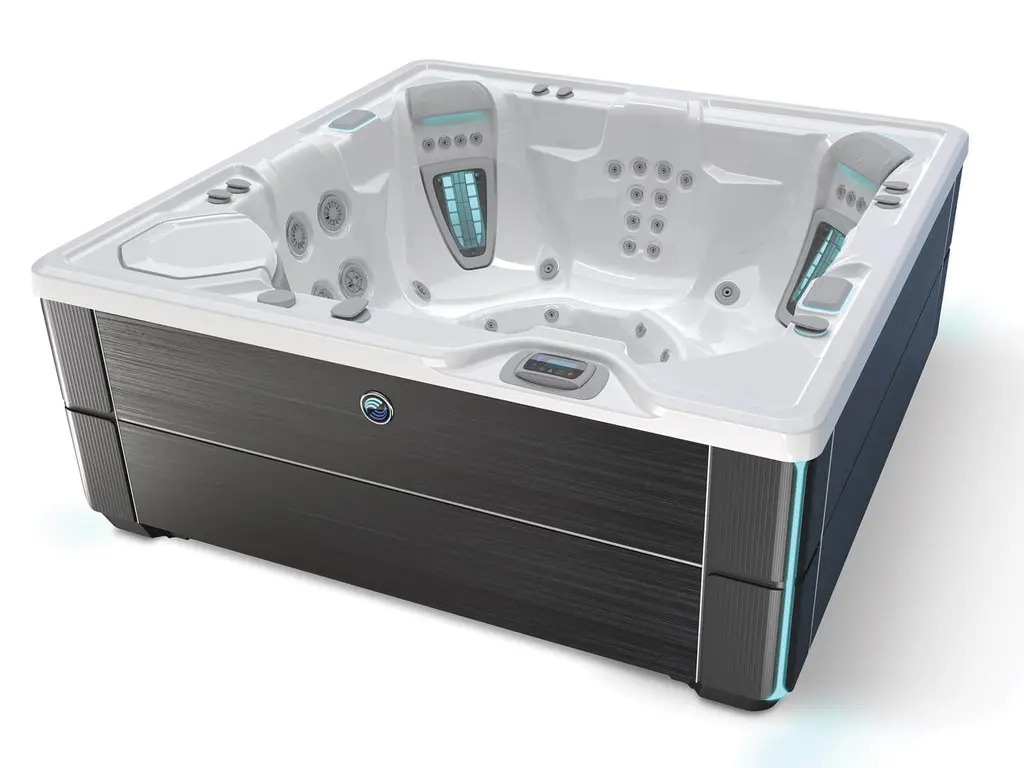

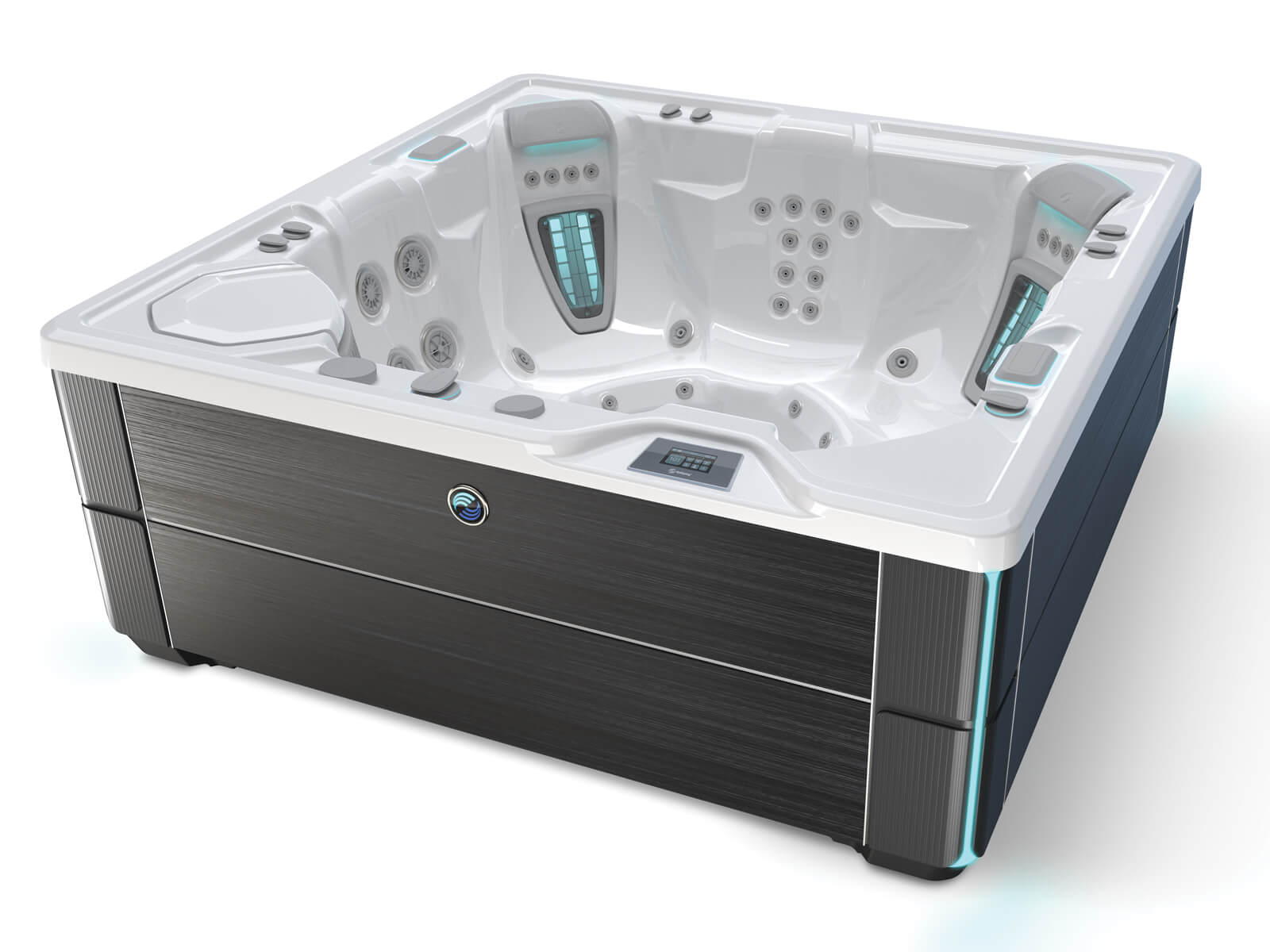

The Vanguard is a luxury spa that seats up to six adults. It includes advanced filtration and comes saltwater-ready for the cleanest possible water on the market.
Specs
Additional Specs
Jet Systems
More Details
Features
Dimensions
7’3” x 7’3” x 36” | 221 cm x 221 cm x 91 cm
Voltage
230 V
Seating Capacity
6
Jets
42
Water Care System
FreshWater® Salt System Included
Insulation
Multiple Layers of Urethane Foam
Filled Weight
4,890 lb. 2,225 kg
Water Feature

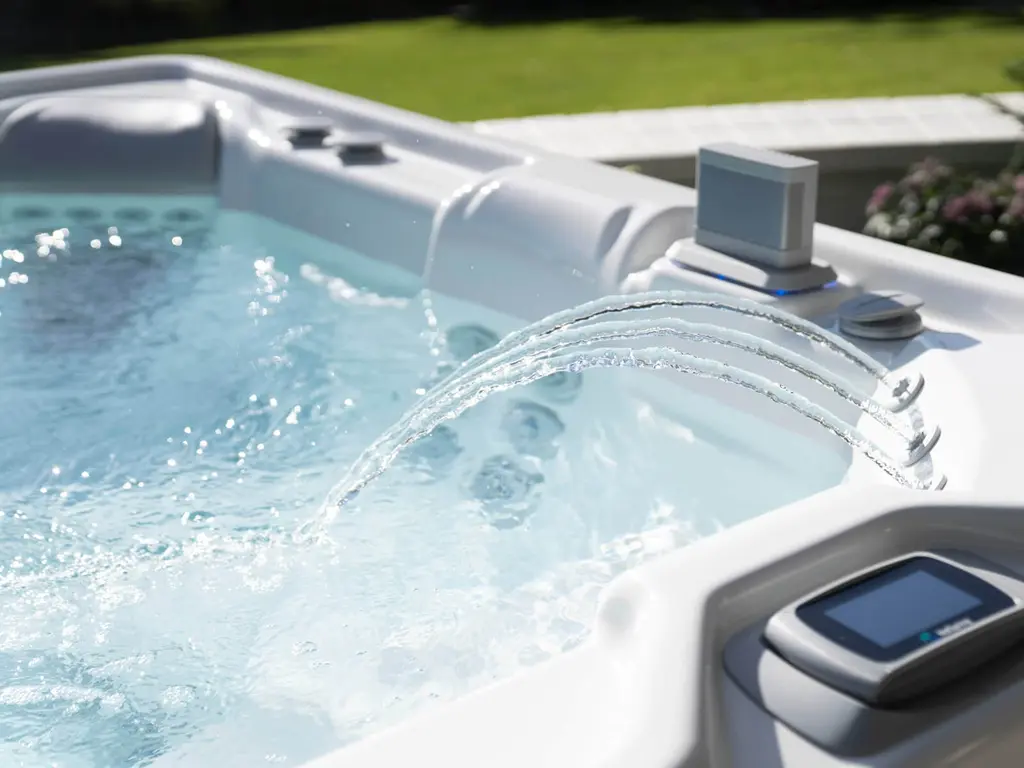

BellaFontana® with Three Illuminated Arcs of Water
Jet Pump 1
Wavemaster® 9000 One-Speed 2.5 HP Continuous Duty 5.2 HP Breakdown Torque
Jet Pump 2
Wavemaster® 9200 Two-Speed 2.5 HP Continuous Duty 5.2 HP Breakdown Torque
Circulation Pump
SilentFlo 5000®
Control System
IQ 2020® with Color LCD Touchscreen 230 V / 50 amp, 60 Hz Includes G.F.C.I. Protected Subpanel
Smart Spa Technology
Yes

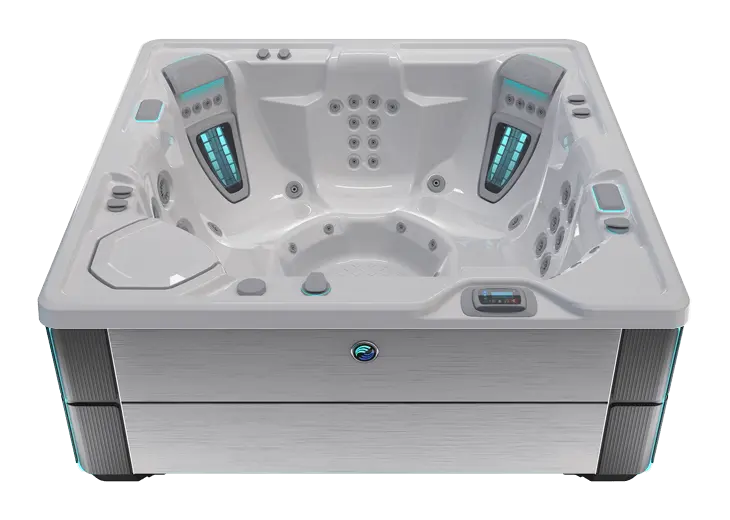

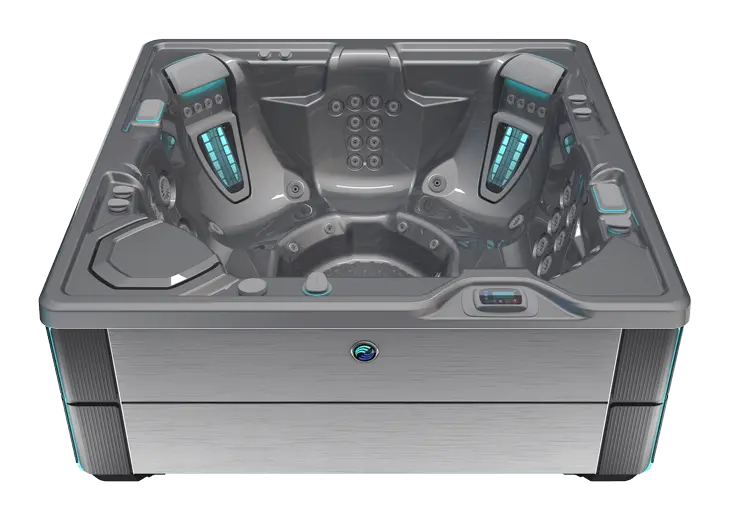

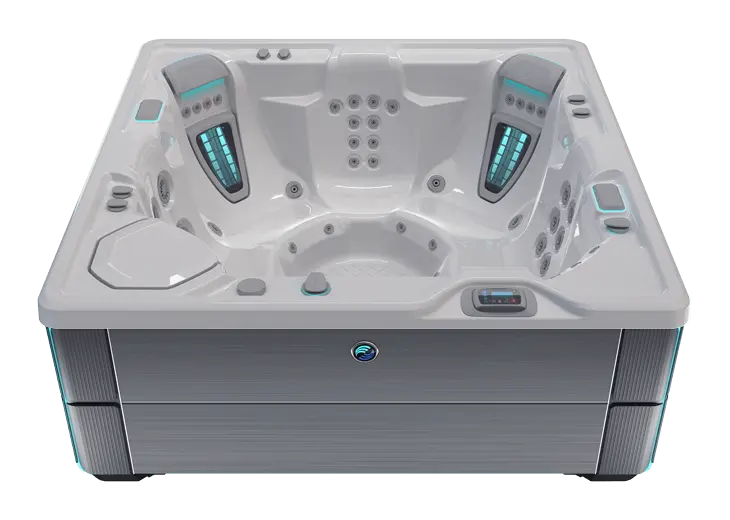

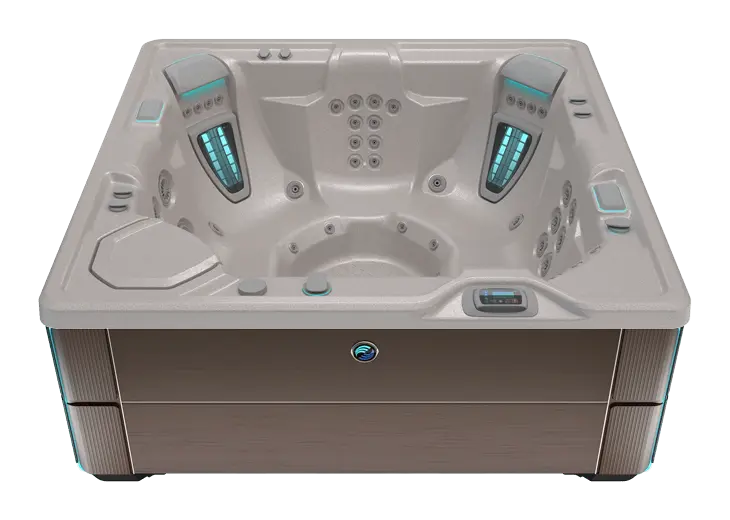

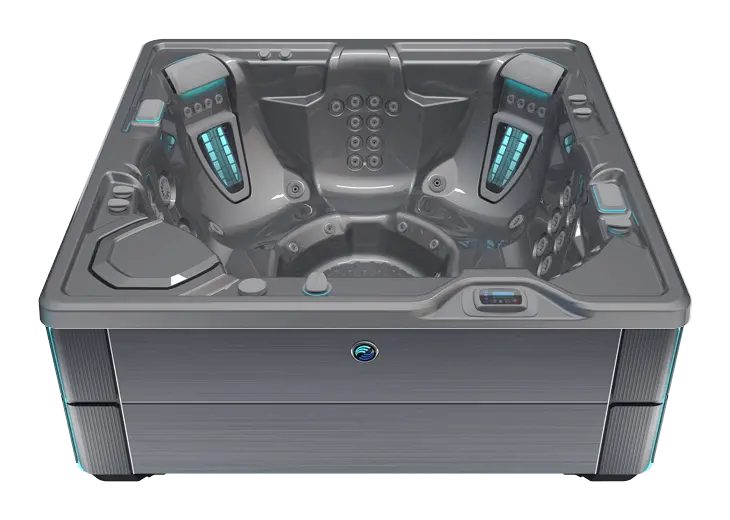

Cabinet Colors

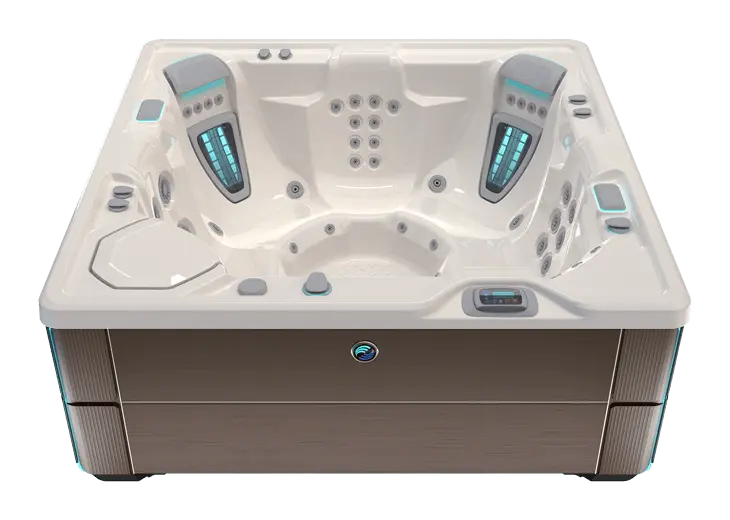

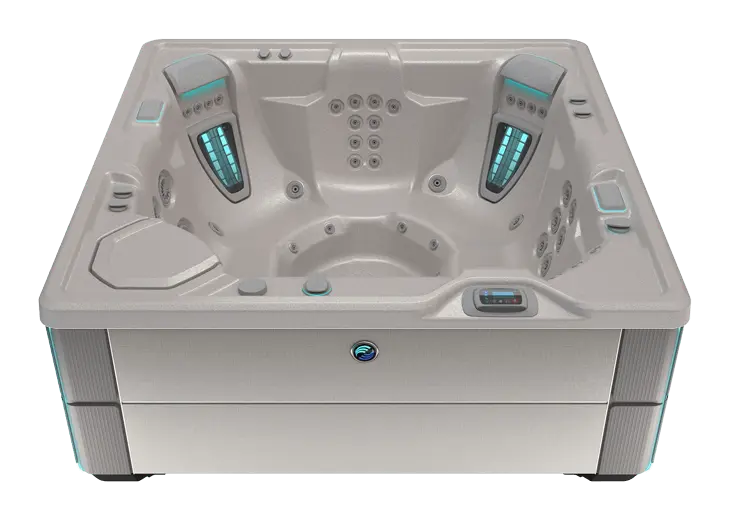

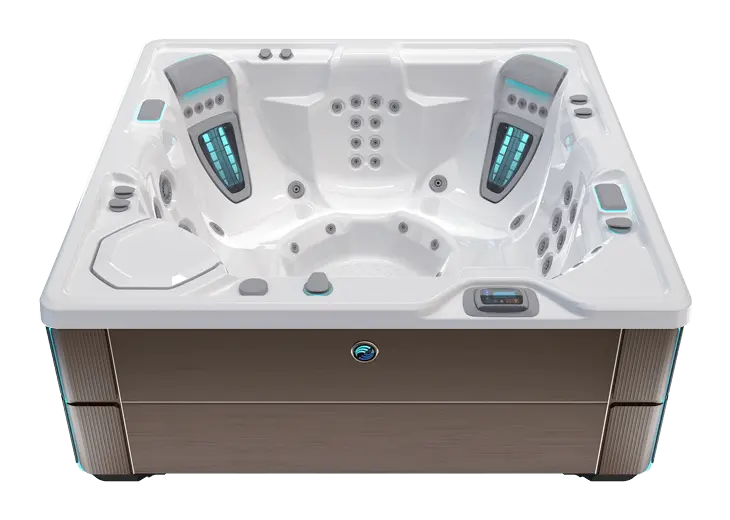

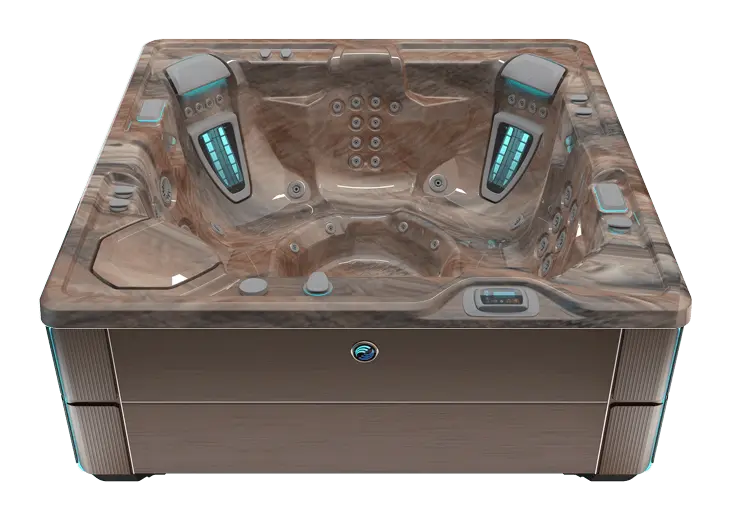

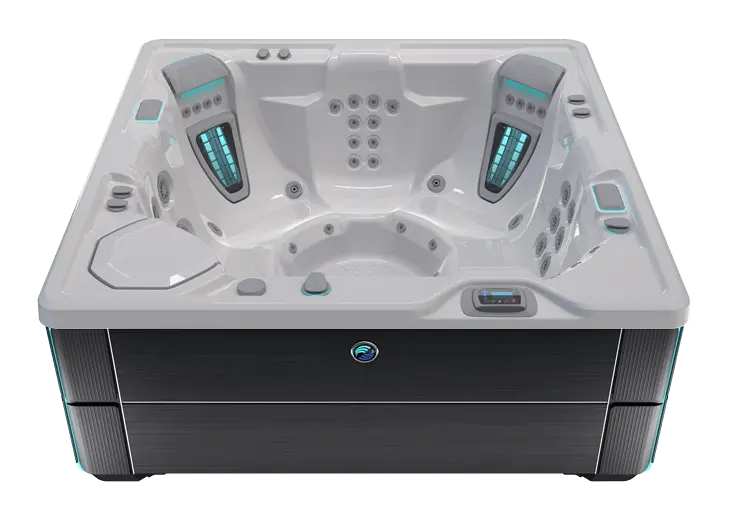

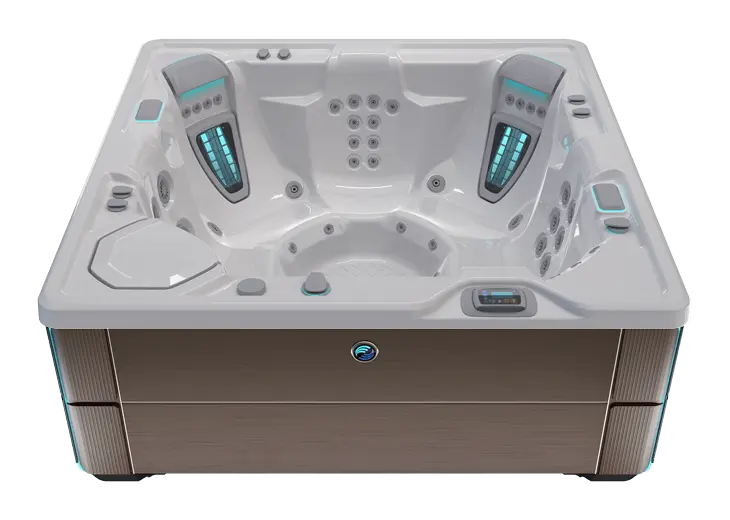

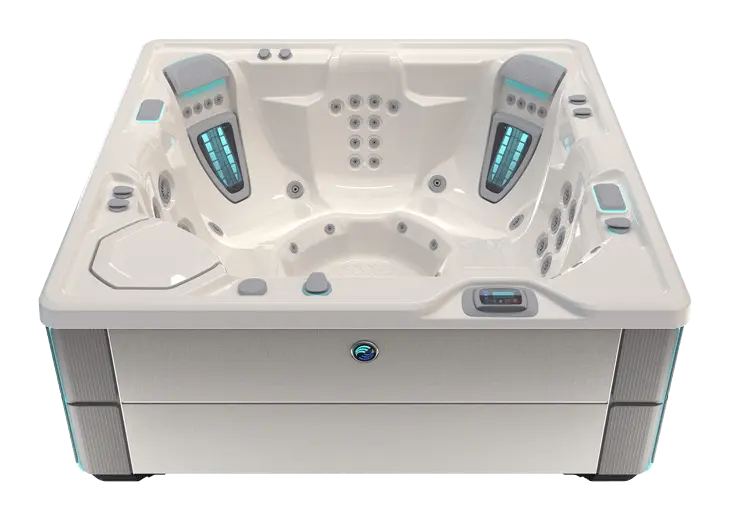

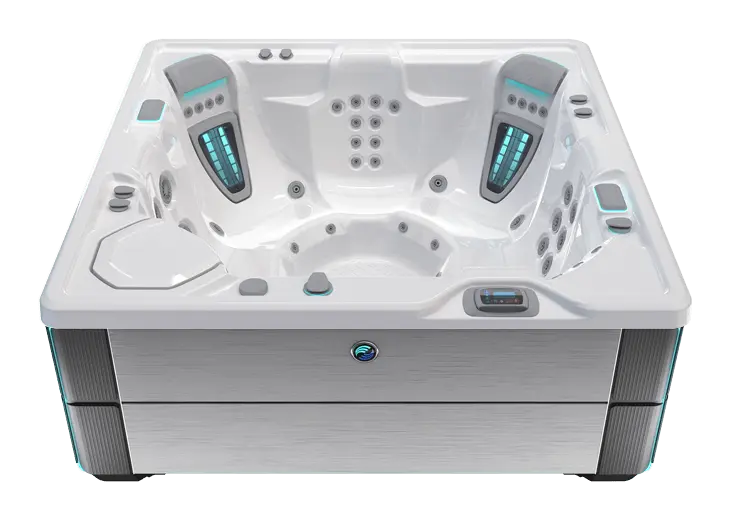

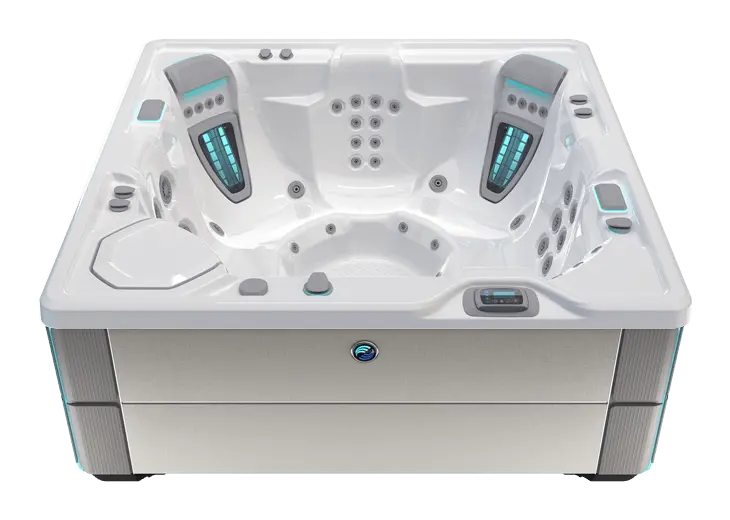

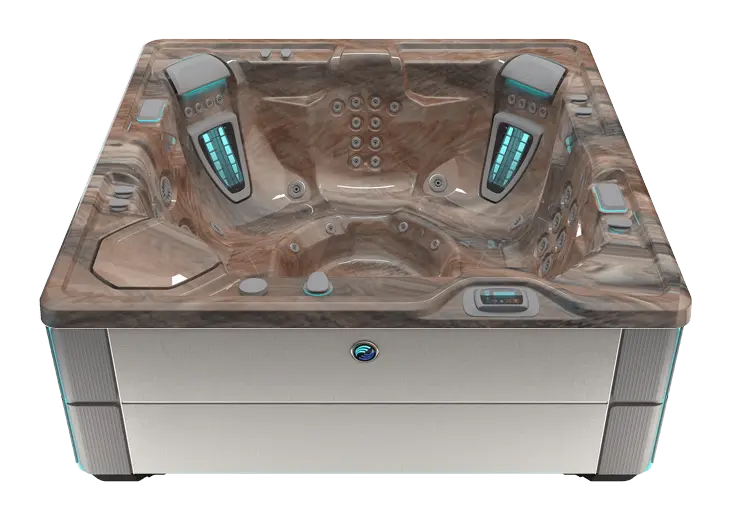

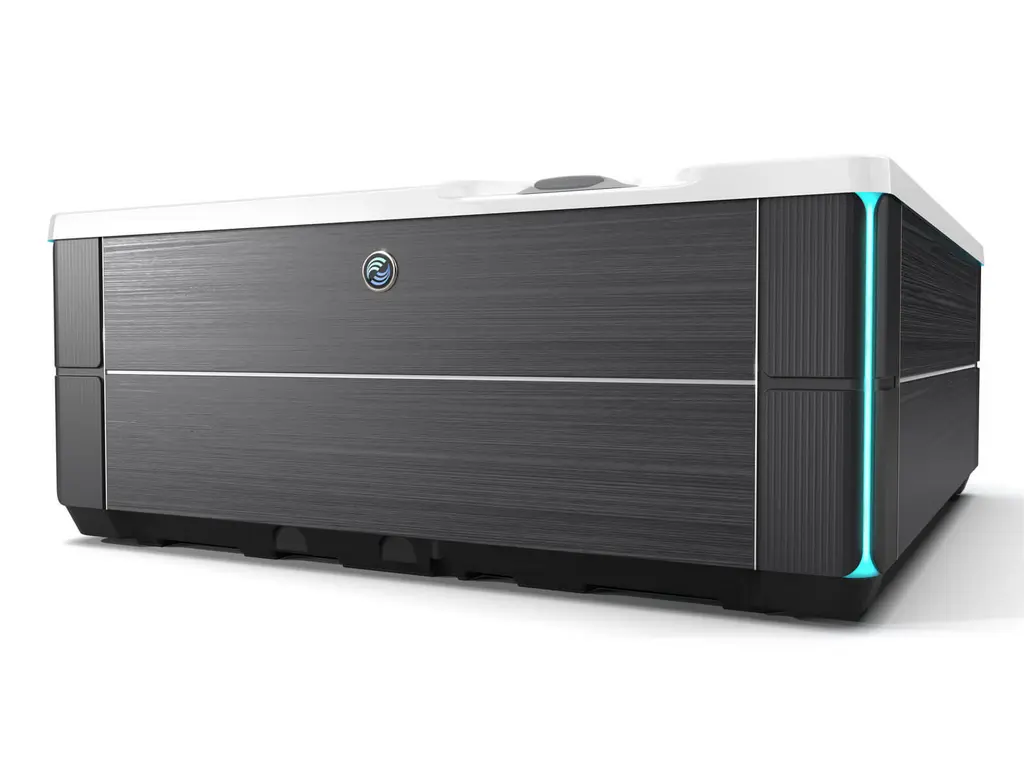

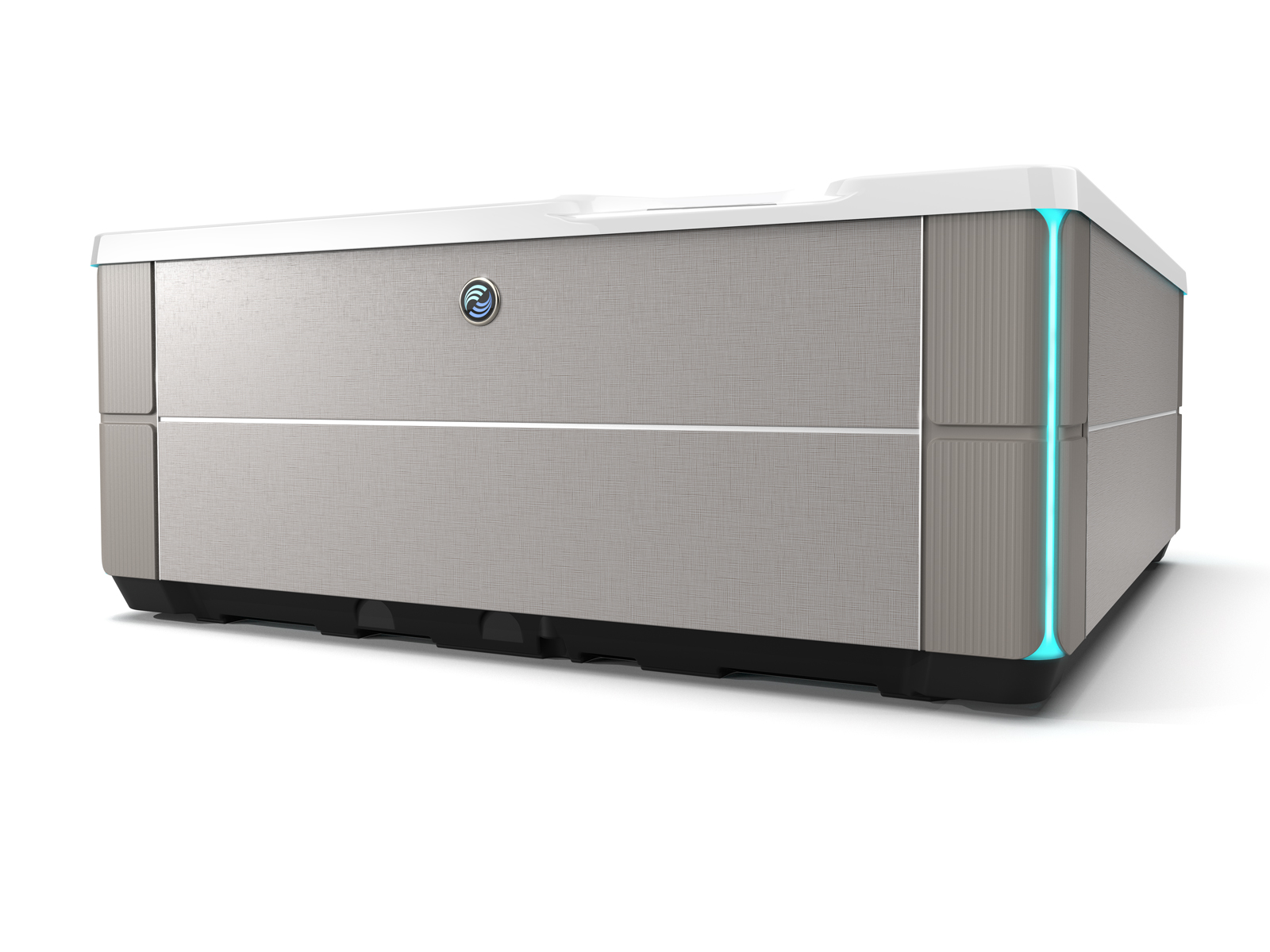

Java Charcoal Blackwood Linen Brushed Nickel
Shell Colors

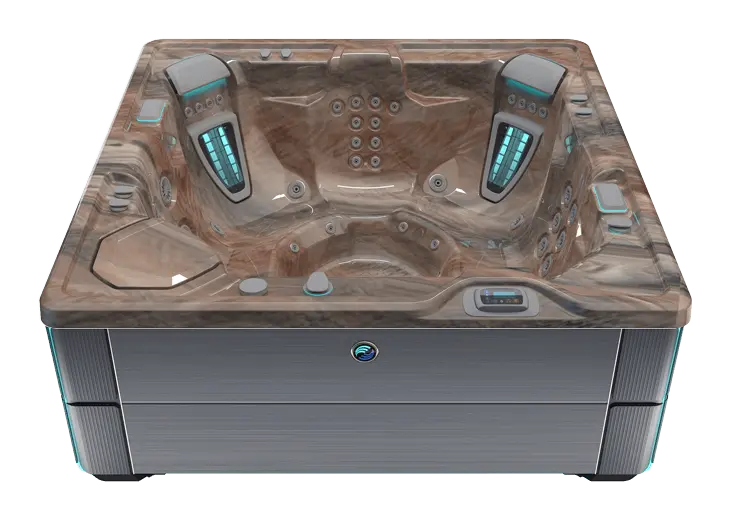

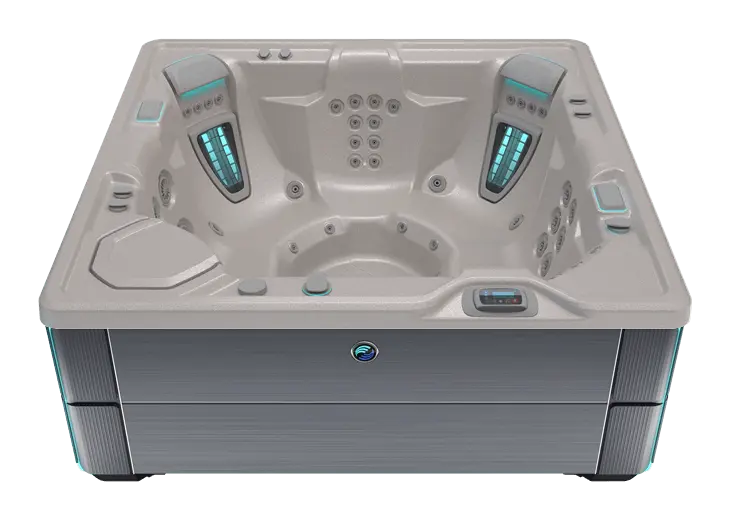

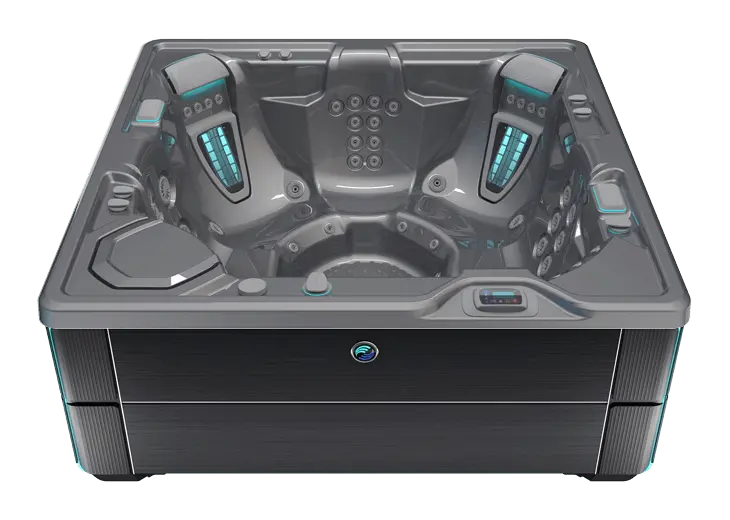

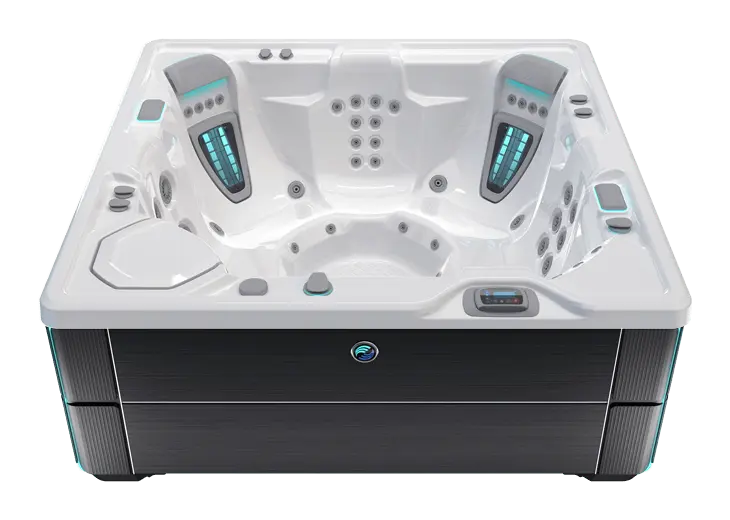

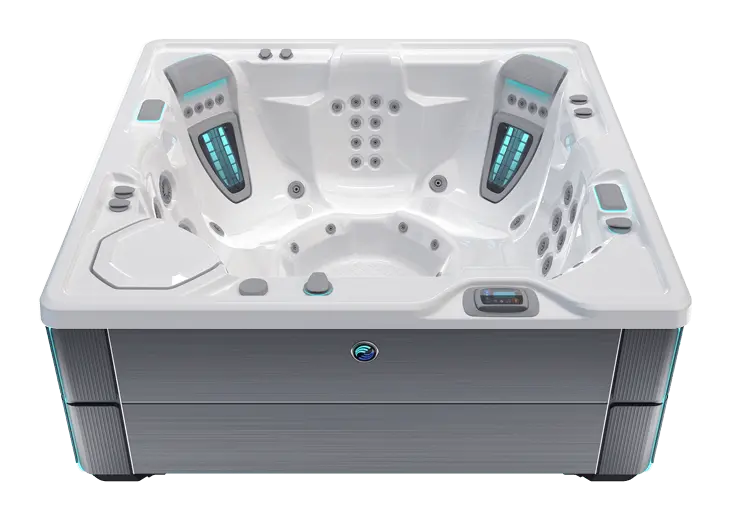

Alpine White Ice Gray Ivory Platinum Pebble Tuscan Sun
Cover Colors
Black Gray Shadow Storm
Bottom Seal
Insulated Polymeric Base Pan
Steps (Optional)
Highlife® Collection Step
Water Capacity
375 g 1,425 L
Dry Weight
710 lb. 320 kg
Lighting System (interior)
Customizable LED Zone Lighting
Lighting System (exterior)
Multi-Color LED Lighting with Timer
Jet Pump 3
No
Cover Lifters
CoverCradle® CoverCradle II UpRite® Lift ‘n Glide®
Seats
6

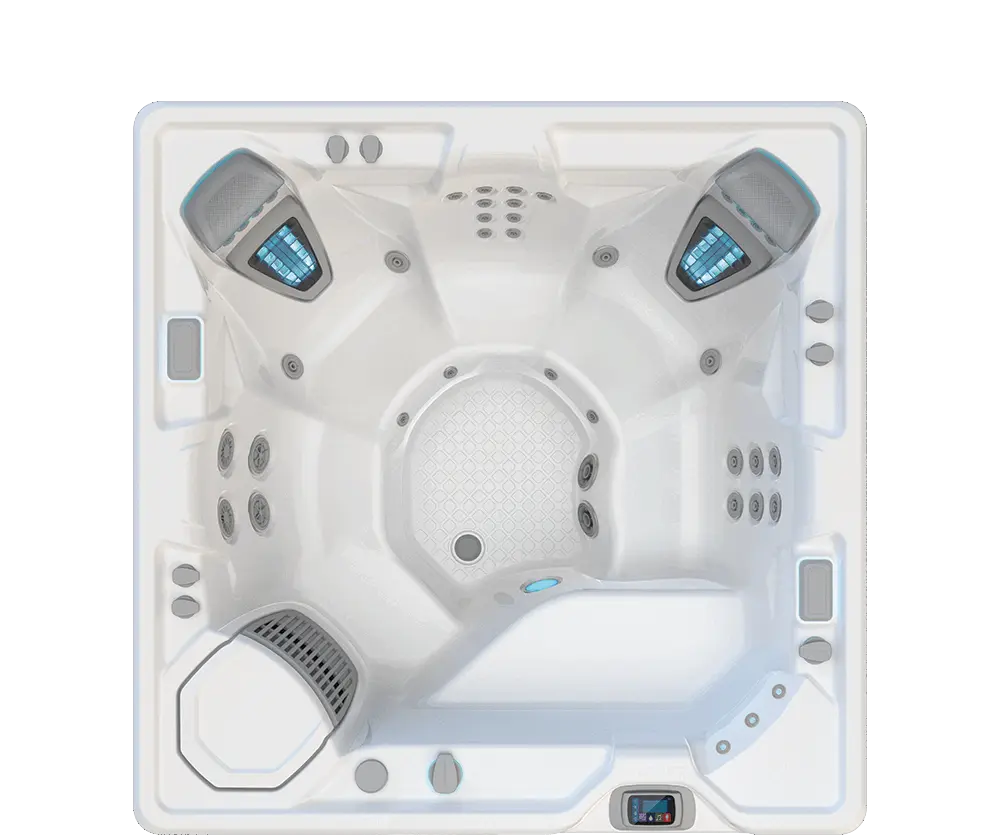

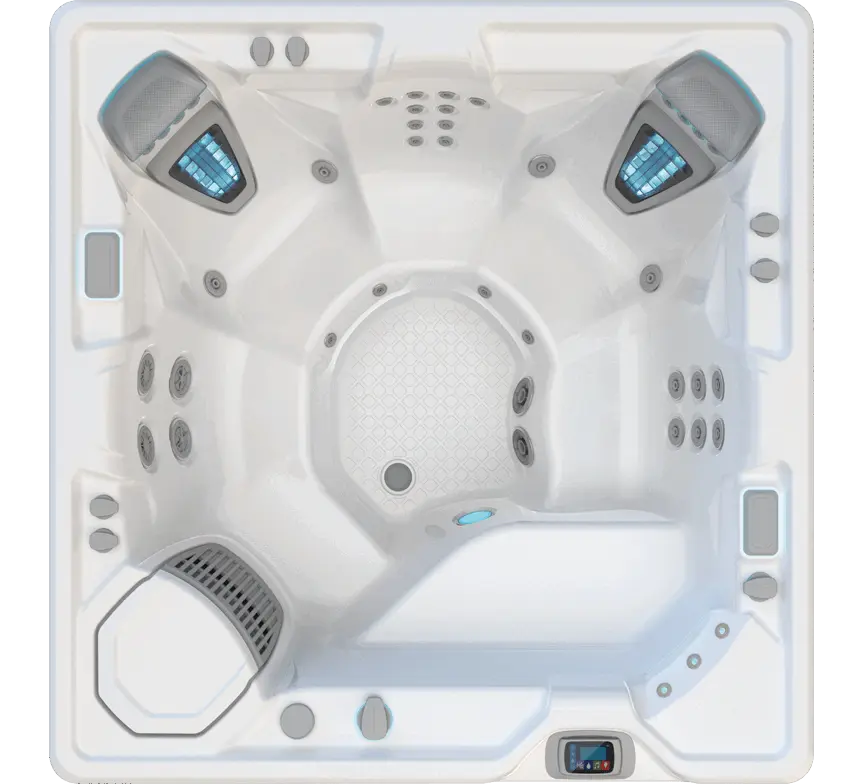

Jet Types
2 - Moto-Massage® DX (2) 2 - SoothingStream® 2 - JetStream® 2 - Rotary Hydromassage 10 - HydroStream® 22 - Directional Precision®
Comfort Control®
Yes
SmartJet® System
Yes
100% No-Bypass Filtration
Yes
High-Flow Tri-X® Filters
Yes
Dual-Action Filtration
No
Polyester Filters with Free-Flow Core
No
Effective Filtration Area
325 sq. ft.
Floor Drain
Yes
Proprietary Heater
No-Fault® 4,000 W / 230 V
Patented Pump Shroud
Yes
Custom-Fit Insulated Cover
WeatherPro™ 4" Tapered Core with Hinge Seal
Energy Standards
Meets California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
Diagnostic/Ready Light
Yes
Polymeric Substructure
Yes
Smart Monitoring System
FreshWater® IQ System Ready
Wireless Music System
Yes
Subwoofer
Yes
FreshWater® III Ozone System
Yes
###jetsystems###
###moreDetails###
Better Massage
Comfortable seats with purposefully arranged jet systems work together to target specific muscle groups. The result is a distinctive massage from your neck to your shoulders, back, wrists, calves, and feet.
Personalized Control
The Comfort Control system lets you dial in your ideal experience from a soft touch to a powerful massage. Use the SmartJets system to customize water flow to different jet groups and seats throughout the spa.

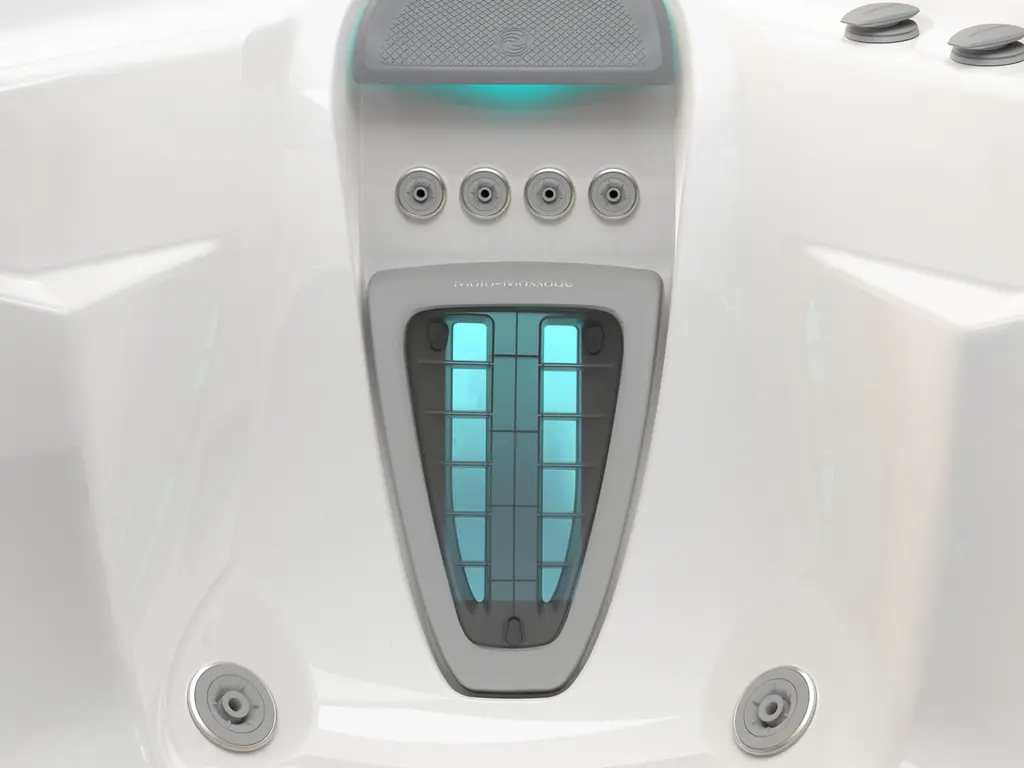

Back Massage Like No Other

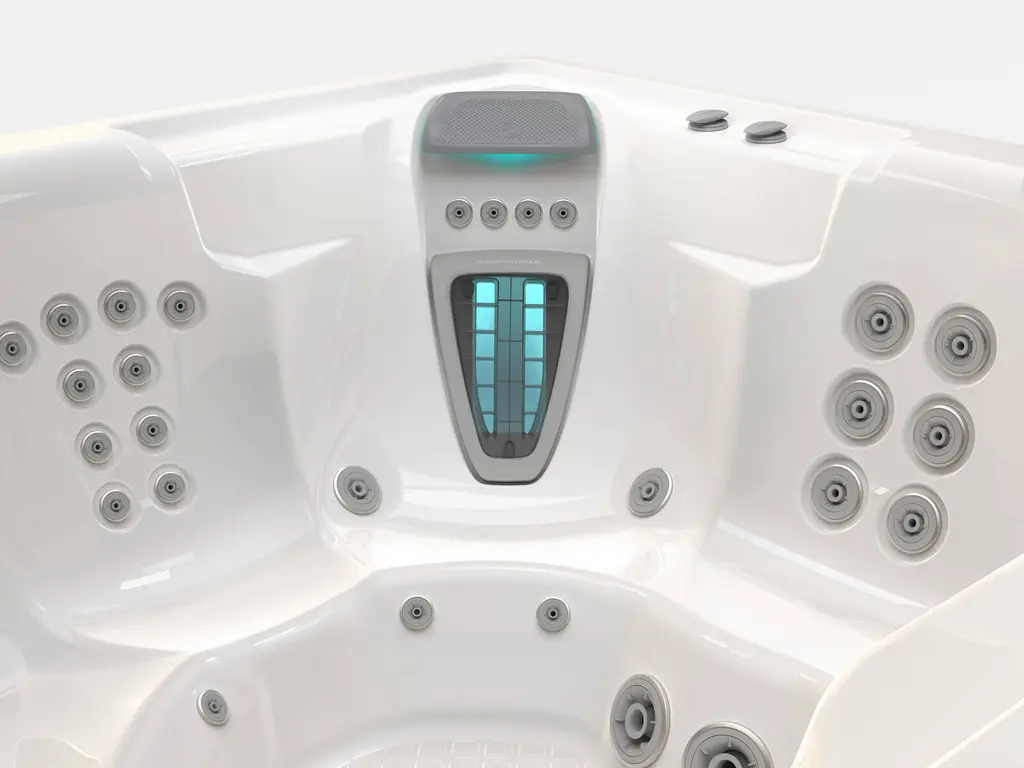

The patented Moto-Massage DX moving jet delivers two streams of water that sweep up and down your back while four Precision jets massage your neck and shoulders, creating an unparalleled hydrotherapy experience.
Better Water
Crystal clear water is essential to a great spa experience. Highlife Collection spas offer exclusive technologies like FreshWater IQ smart, in-line water care system that helps you keep your spa water clean, balanced, and natural-feeling.
FreshWater Salt System Included
This system automatically generates chlorine from salt for soft, natural-feeling water without harsh odors, itchy skin, or irritated eyes. Keep your hot tub water clean and feeling great for up to a full year.
100% No-Bypass Filtration
All the water is filtered all the time. In other spas, water bypasses the filters while the jets are on, when you need it most. Tri-X filters provide a unique no-pleat, multi-channel design to maximize water exposure for better filtration and powerful flow.
Super Energy Efficient
Highlife Collection spas offer our very best in energy-saving design with a comprehensive Energy smart system.
Better Energy
Layers of high-density polyurethane foam insulate the spa shell. An insulated base pan creates insulating air space against cold ground.
The Absolute Best Hot Tub Ownership Experience
You can count on lasting quality and unparalleled customer care from a global network of dealers.
Polymer Structure and Base Pan
The lightweight, polymeric substructure provides an outstanding support structure, integrated with the sealed base pan, that will never rust or rot.
Visually Stunning
Comfortable, sculpted seating and stylish design details work together to create a design more like furniture than a hot tub.
Distinctive Color Palette
Choose from six cabinet finishes and a variety of shell colors to create a look that is just right for you.

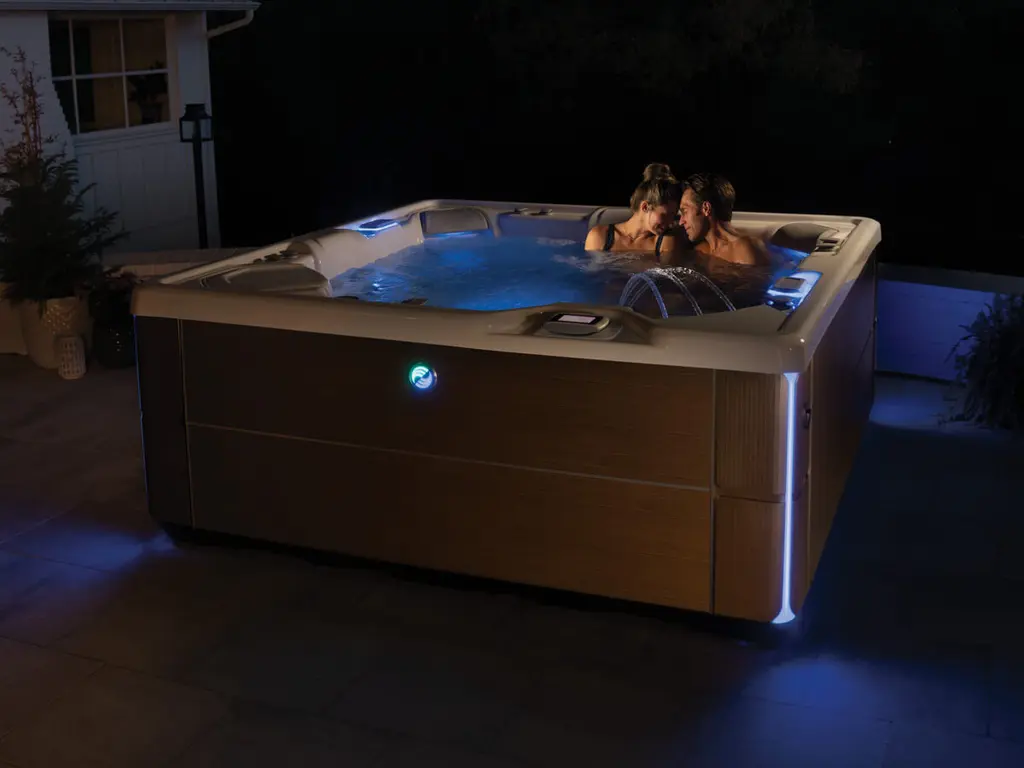

Customizable Zone Lighting
Create the perfect ambiance inside and outside the spa from subtle to spectacular with the multi-zone LED lighting system.
